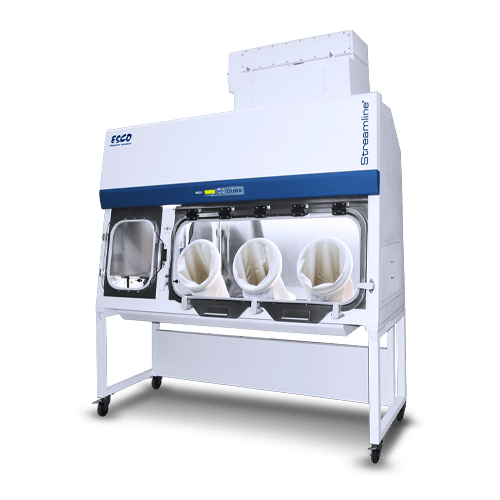

ESCO SCI-2G Isolation Containment (Class III, 1.6 m)

Main Chamber Nominal Size (Width): 1.6 meters

External Dimension (L x W x H): 1645 x 823 x 2516 mm

Main Chamber Work Zone (W x D x H): 965 x 621 x 614 mm

Pass Through (W x D x H): 453 x 621 x 614 mm

Work Zone and Interchange Chamber Performance: ISO Class 3 (at rest), ISO Class 5 (in operation)

Downflow and Exhaust Filter Type: H14 filters with integral metal guards and filter frame gaskets; fully compliant with EN 1822 (H14) and IEST-RP-CC001.3 requirements (each cabinet has individual downflow and exhaust filters)

Typical Filter Efficiency: >99.999% for particle size between 0.1 to 0.3 micron

Fluorescent Lamp Intensity: ≥ 800 lux

Isolator Construction:

Main Body: EG Steel 1.5 mm (0.06”) 16 Gauge Electro-Galvanized Steel with White Oven-Baked Epoxy-Polyester Isocide Antimicrobial Powder Coated Finish

Main Body: Stainless Steel 1.5 mm (0.06”) 16 gauge stainless steel, type 304, with 4B finish

Work Tray: 1.5 mm (0.06”) 16 gauge stainless steel, type 316L, with 4B finish

Side Walls: 1.5 mm (0.06”) 16 gauge stainless steel, type 316L, with 4B finish

Electrical:  220-240V, AC, 50/60Hz, 1Ø

Cabinet Full Load Amp (FLA): 4.5 A

Optional Outlets FLA: 5.0 A

Cabinet Nominal Power: 440 W

Maximum Power: 700 W

Cabinet BTU: 1501 W

Net Weight: 490 kg
