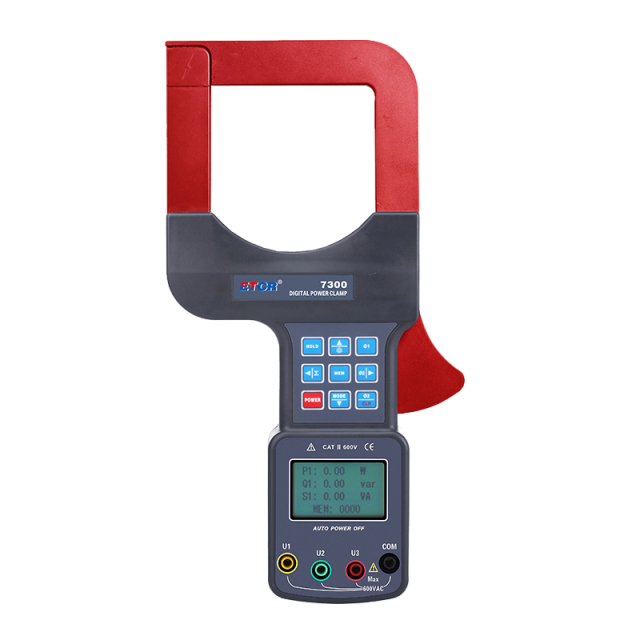

Function: Measure leakage current, active power, reactive power, apparent power and other parameters
Current Range: AC 0.00mA~1200A| Resolution 0.01mA
Power Range: AC 0.5W~720kW | Resolution 0.01W
Apparent Power Measurement: AC 0.50VA~720kVA | Resolution 0.01VA
Reactive Power Measurement: AC 0.50var~720kvar | Resolution 0.01var
Voltage Range: AC 0~600V Resolution 0.01V
Frequency Range: 25Hz~100Hz Resolution 0.1Hz
Phase Range: 0.0°~360.0° | Resolution 0.1°
Power Factor Range: 0.300~1.000| Resolution: 0.001
Power Energy Range: 0.000kWh~72000kWh | Resolution 0.0001kWh
Highest precision: ±(1.5%rdg+5dgt)
Power Supply: DC6V alkaline dry batteries (LR6 1.5VX4PCS)
Working Current: Backlight open 50mA; Backlight close 25mA
Weight: 830g (with battery)
Meter Dimension: 275mmX145mmX40mm
CT Size: 80mmX80mm (can clamp φ80mm cable or 96mmX4mm steel flat ground cable)
Sampling Rate: 2 times/second
Frequency: 50Hz, 60Hz automatic identification
Communication Interface: Storage data can be uploaded to computer, convenient to data analyze, communication cable length: 1.8m
Data Storage: 200 groups, flash display “FULL” symbol indicate storage full
Data Hold: Data hold function: “HOLD” symbol display
Overflow Display: Exceed measure range overflow function: “OL” symbol display
Auto Shut Down: 15 minutes after power on, it will shut down automatically without any operation to reduce the power consumption.
Battery Voltage: While battery voltage is lower than 5.2V. low battery voltage symbol display, remind to replace the battery
Backlight: Yes, Controlled by “ * ”key
Line Voltage: Below AC 600V circuit measurement
Accessories: Meter: 1PCS; Test Wires: 4PCS (each of yellow, green, red, black); Communication cable: 1PCS; Meter Case: 1PCS; LR6 battery: 4PCS
