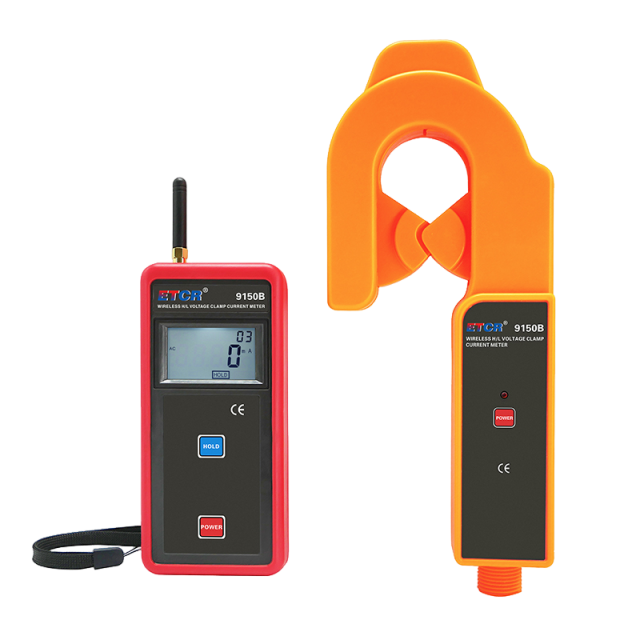

ETCR ETCR9150B Wireless H/L Voltage Clamp Current Meter (Φ36mm, AC 0mA～1200A)

Name: ETCR ETCR9150B Wireless H/L Voltage Clamp Current Meter (Φ36mm, AC 0mA～1200A)
Brand: ETCR
Price: 4817078.59 MMK
Availability: OutOfStock

ManufacturerETCR(View more products from this manufacturer)

ModelETCR9150B

4,817,079 Kyat

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Power Supply: DC6V alkaline dry battery (1.5V AAA×4)

Display Mode: 4-digit LCD display, backlight function, suitable for dim place

LCD Size: 47mm×28.5mm

Measurement Method: Clamp CT, integration method

Transmission Mode: 433MHz Wireless transmission distance 30m

Clamp Jaw Size: Φ36mm

Measurement Range: AC 0.00mA~1200.0A

Current Frequency: 50Hz/60Hz automatic

Solution: 0.01mA

Shift Gear: 0.00mA~1200A Fully automatic shift gear

Test Accuracy:

0.00mA~100A: ±1%rdg±5dgt

100A~599A: ±1.5%rdg±5dgt

600A~1200A: ±2%rdg±5dgt

Memory: 99 groups, in storage process “MEM” symbol display, “FULL” symbol flicker indicate storage full

PEAK Hold: Automatically hold the test value at high point. Usually Press PEAK key in the test mode ,the PEAK lamp lights up. The peak hold function is enabled, press PEAK key again to cancel this function.

Line Voltage: Test below 110kV, operating with insulating rod

Data Hold: Press HOLD key to hold data in test mode, “HOLD" symbol display, press HOLD key again to cancel this function.

Data Access: "MR" symbol display, can look up all storage data

Sampling Rate: 2 times/second

Overflow Display: Exceed measure range overflow function:"OL A" symbol display

Automatic Shutdown: After 15 minutes power on, the meter shuts down automatically without any operation to reduce battery consumption

Battery Voltage: When battery voltage is lower than 4.8V, low battery voltage symbol display and remind to replace battery.

Meter Size: Meter: 119mm×297mm×58mm; receiver: 165mm×78mm×42mm

Weight:

Meter: 400g (include battery); receiver: 330g (include battery), total weight: 3.3kg(include insulating rod and battery)

Interference: No 315MHz, 433MHz same frequency signal interference

Telescoping Insulating Rod Size: About 4300mm
