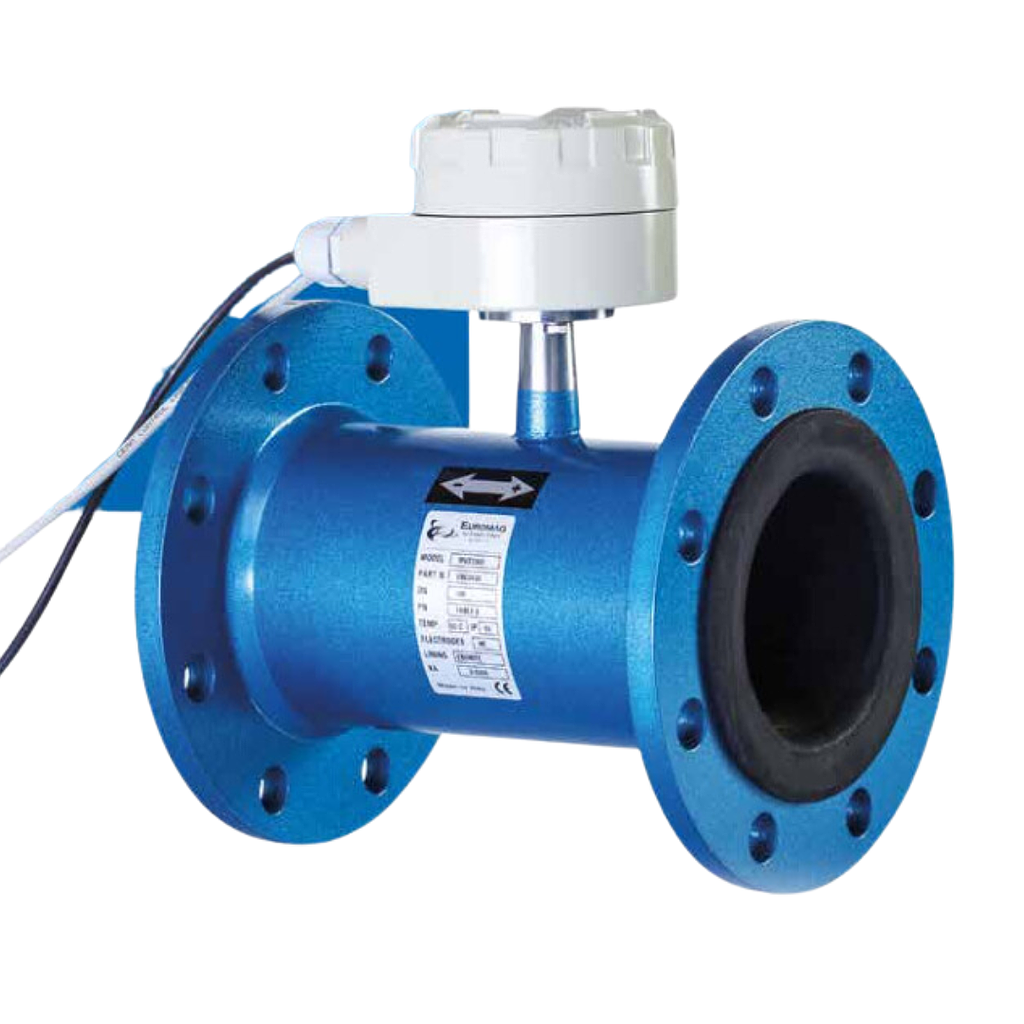

Euromag SENSOR MUT2300 Electromagnetic flowmeter

Technical Specifications

Material:

Flow tube material: AISI 304, AISI 316 (optional)

Flanges material: Carbon steel (S235JR - 1.0037), AISI 304 optional, AISI 316 optional

Available electrodes: AISI316 (standard), Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum

Internal lining: Ebonite

Temperature:

Liquid temperature: -40°C / + 80°C

Diameters:

Available diameters(mm): 50, 65, 80, 100, 125, 150, 200, 250, 300

Standard flanged connections: EN1092-1 PN 16, ANSI 150

Flanged connections on request: AS 2129 (Table D, E, F), AS 4087 (PN 16, 21), KS10K, others on request

Standard operation pressure: 21 bar

Pressure drop class:

• DN≤80 ΔP10 (< 0,10 bar)

• DN≥100 ΔP16 (< 0,16 bar

Overall:

Installation: requirements/conditions U0-D0

Protection Degree: IP68 permanent submersion at 1,5 m (EN 60529)

Convertes compatibility: MC608A/B/R/P, MC406

Electrical connections: Cableglands M20 x 1.5 + terminal box + sealing resin
