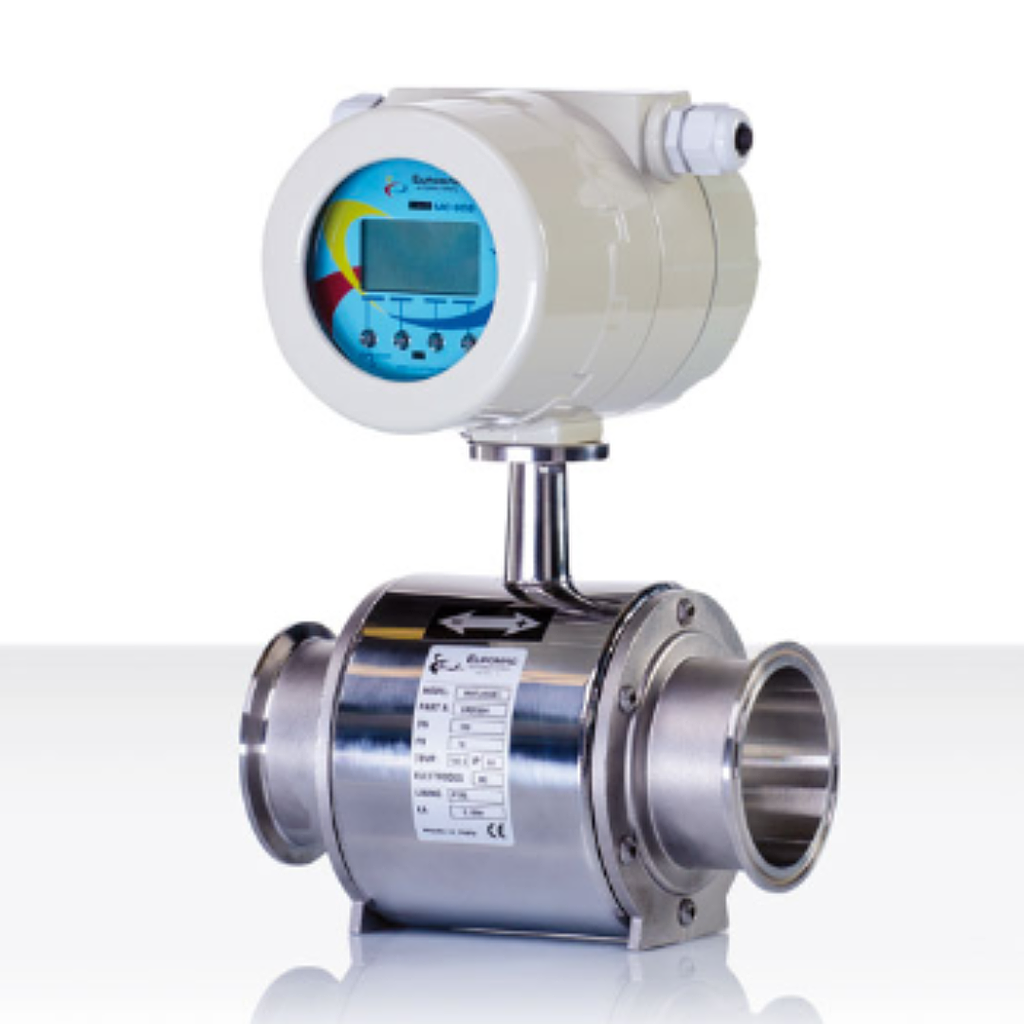

Euromag SENSOR MUT2400EL The electromagnetic flowmeter

Technical Specifications

Flow tube material: AISI 304 / AISI 316 (optional)

Connections material :AISI304  / AISI 316 (optional)

Available electrodes: Hastelloy C (standard)/ Hastelloy B/ Titanium/Tantalum

Internal lining: PTFE for food

Liquid temperature Separate: -40°C / + 130°C (180°C optional) / Compact -25C° / + 80C°

Available diameters (mm) 25, 32, 40, 50, 65, 80, 100

Standard connections: Triclamp

Other connections available: DIN 11851 Female/ SMS 1146 Female

Standard operation pressure: 16 bar with Triclamp / 25 Bar with DIN or SMS

Number of electrodes: 2 Standards – 3rd electrode for empty pipe alarm as option

Installation requirements/conditions: U5 – D3

Protection Degree: IP68 permanent submersion at 1,5 m (EN 60529)

Convertes compatibility: MC608A/P

Electrical connections: Cableglands M20 x 1.5 + terminal box (aluminum std, polycarbonate optional) + sealing resin

Hygienic: FDA approved materials – EHEDG Pending
