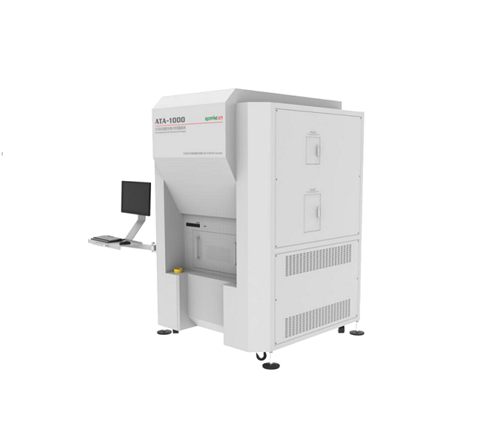

EVERFINE ATA-1000 AUTO-TEMPERATURED LED OPTO-ELECTRONIC ANALYZER (350-1000nm, 1lm～2000lm)
Manufacturer: EVERFINE Model: ATA-1000 - Contact
Detector: TE-cooled CCD;
CCD refrigeration temperature: -10℃; Stability: ±0.05℃;
CCD pixel: 1024x128（Allow Binning mode）
Grating: Holographic grating with flat field correction
Optical input: Fiber optics
Wavelength band: 350-1000nm
Spectral resolution: 3.0nm
Wavelength accuracy: ±0.3nm
Measurement range of luminous flux: 1lm～2000lm
Power output range: DC, or as required
The max. power of LED: 20W
The max. size of LED: Diameter 50mm
