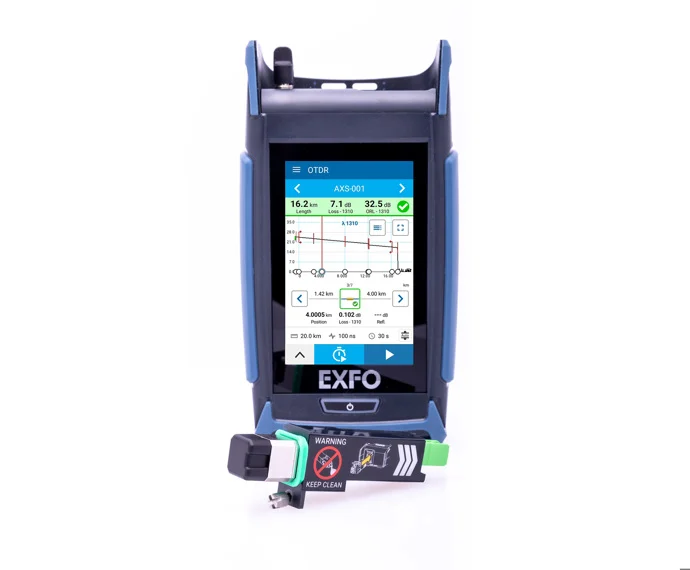

EXFO AXS-120 Last-mile/Access mini-OTDR (1310 ± 30/1550 ± 30 nm)

TECHNICAL SPECIFICATIONS

Wavelength (nm):  1310 ± 30/1550 ± 30

Dynamic range (dB):  34/32

Event dead zone (m):  0.8

Attenuation dead zone (m):  3.5

Distance range (km) : 0.65 to 200

PON dead zone (m):  35

Pulse width (ns) : 3 to 20 000

Linearity (dB/dB) : ±0.05

Loss resolution (dB) : 0.001

Sampling resolution (m) : 0.04 to 5

Sampling points : Up to 256 000

Distance uncertainty (m): ±(0.75 + 0.0025% × distance + sampling resolution)

Reflectance accuracy (dB): ±2

GENERAL SPECIFICATIONS

Size (H × W × D) : 171 mm × 93 mm × 48 mm (6 3/4 in × 3 11/16 in × 1 7/8 in)

Weight (with battery):  0.5 kg (1.1 lb)

Display : 4 in (101.6 mm) touchscreen, 800 × 480 TFT, portrait and landscape view

Interfaces : One USB-C port

Storage : 8 GB internal memory (10 000 OTDR traces, typical)

Connectivity : Bluetooth®, WiFi and USB-C

Results format : PDF report on the unit .sor trace as per Telcordia (Bellcore), .trcx

Battery : Rechargeable lithium-polymer battery, USB type-C charging port connector

Battery autonomy : >10 hours of operation as per Telcordia (Bellcore) TR-NWT-001138

Temperature Operating:  Storage:

–10 °C to 45 °C (14 °F to 113 °F)

–40 °C to 70 °C (–40 °F to 158 °F) g

Relative humidity : < 93 % non-condensing

Data management : FastReporter 3, EXFO Exchange

Adapters : Multiple changeable adapters to fit any optical connectors:  SC, FC, LC, and more
