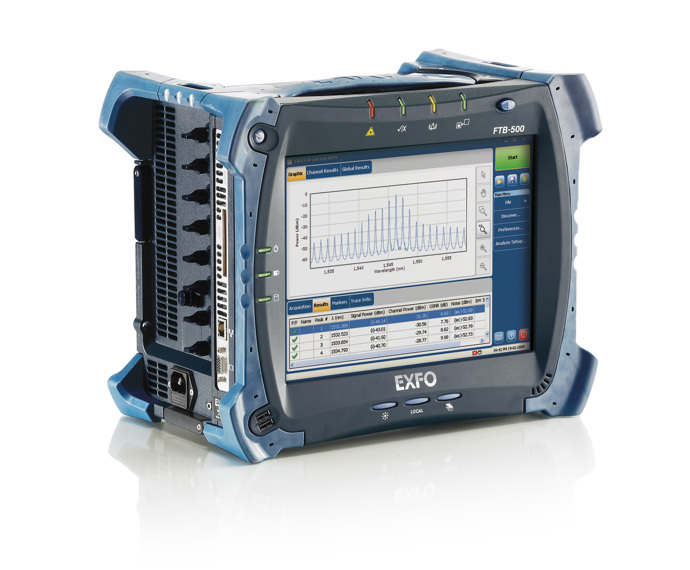

EXFO FTB-500 Universal Modular Measurement Platform

TECHNICAL SPECIFICATIONS

Central processing unit (CPU): Intel Core 2 Duo

Display:

+ Touchscreen, color, 800 x 600 TFT, 307 mm (12.1 in)

+ Interfaces

+ Ethernet port

+ Fiber probe port

+ ExpressCard port 34 mm format

+ Serial RS-232 port

+ Monitor port

+ Four USB 2.0 ports

+ Standard PC mic in and speaker out ports (3.5 mm)

Storage

+ Internal 80 GB hard drive minimum with G-shock protection

+ Flash USB drive (1 GB, 2 GB and 8 GB optional)

+ ExpressCard memory card (16 GB and up, optional)

+ External USB read/write DVD drive (optional)

Batteries:

+  Eight-slot configuration: three rechargeable Li-ion smart batteries (total of 207 W•h)

+ Four-slot configuration: two rechargeable Li-ion smart batteries (total of 138 W•h)

Power supply

+  Eight-slot configuration: AC input: 100 – 240 V; 50/60 Hz; 4.8 A

+ Four-slot configuration: AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 4.8 A, output: 24 V; 8.33 A

GENERAL SPECIFICATIONS

Size (H x W x D): Eight-slot configuration: 366 mm x 296 mm x 216 mm (11 11/16 in x 14 7/16 in x 8 1 /2 in); Four-slot configuration: 366 mm x 296 mm x 146 mm (11 11/16 in x 14 7/16 in x 5 3/4 in)

Weight: Eight-slot configuration: 10.9 kg (24 lb); Four-slot configuration: 8.5 kg (18.7 lb)

Temperature:

Operating: 0 ºC to 50 ºC (32 ºF to 122 ºF)

Storage: –40 ºC to 70 ºC (–40 ºF to 158ºF)

Relative humidity 0 % to 95 % (non-condensing)
