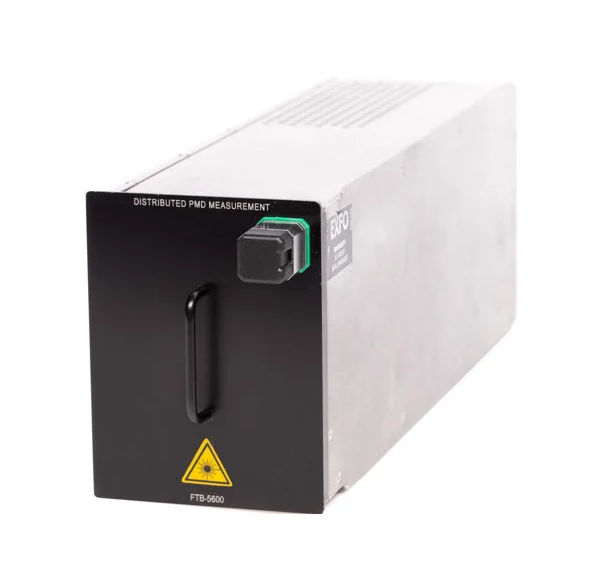

EXFO FTB-5600 Distributed Pmd Analyzer (1520 to 1580 nm)

TECHNICAL SPECIFICATIONS

Wavelength range (nm): 1520 to 1580

Maximum cumulative PMD (ps): ≥20

Minimum measurable cumulative PMD (ps): 0.1

Cumulative PMD uncertainty (ps): ± (0.1 + 5 % x PMD)

PMD dynamic range (dB): 15

Distance uncertainty (OTDR) (m): ±10

GENERAL SPECIFICATIONS

Size (H x W x D): 96 mm x 75 mm x 281 mm (3 ¾ in x 3 in x 11 in)

Weight: 2 kg (4.4 lb)

Temperature

Operating: 0 °C to 40 °C (32 °F to 104 °F)

Storage: —40 °C to 70 °C (–40 °F to 158 °F)

Relative humidity: 0 % to 93 % non-condensing
