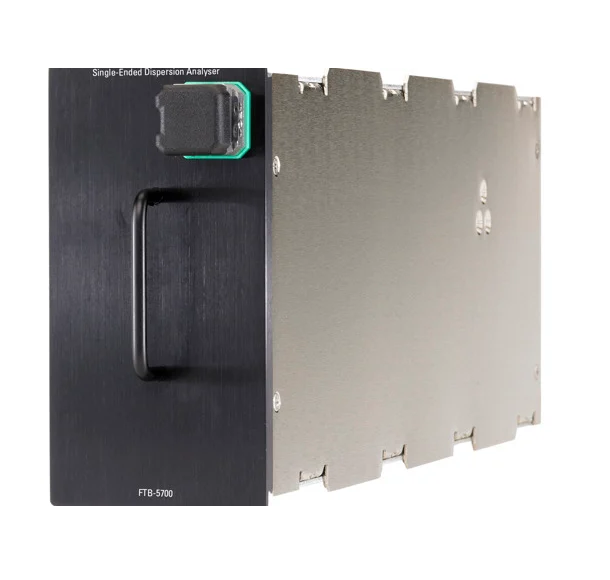

EXFO FTB-5700 Single-ended dispersion analyzer (1475 to 1626 nm)

TECHNICAL SPECIFICATIONS

Measured wavelength range (nm): 1475 to 1626

Dynamic range (dB): 25 (32 with reflector)

Distance uncertainty (km): ±(0.01 + 1 % x distance)

Chromatic dispersion

Number of test points: 8

CD uncertainty (ps/nm): ±10

Test time (s): 40

PMD

PMD display range (ps): up to 50

PMD range (strong mode coupling) (ps): 0.1 to 20

PMD uncertainty (strong mode coupling) (ps) : ± (0.2 + 5 % x PMD)

Test time (s): <180

GENERAL SPECIFICATIONS

Size (H x W x D): 96 mm x 50 mm x 281 mm (3 ¾ in x 2 in x 11 in)

Weight: 1.3 kg (2.8 lb)

Temperature

Operating: 0 °C to 50 °C (32 °F to 122 °F)

Storage: —40 °C to 70 °C (–40 °F to 158 °F)

Relative humidity: 0 % to 95 % non-condensing
