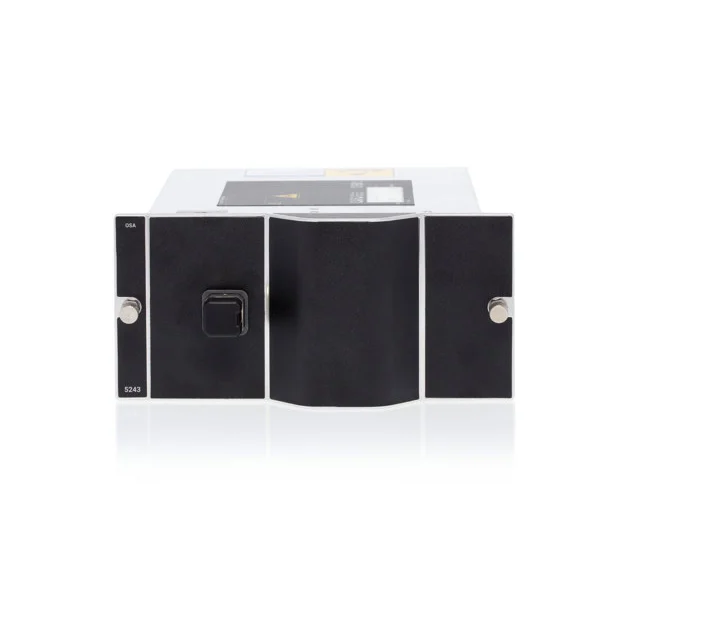

EXFO FTBx-5243-HWA High Wavelength Accuracy Optical Spectrum Analyzer (1250 to 1650 nm)

SPECTRAL MEASUREMENT

Wavelength range (nm): 1250 to 1650

Wavelength uncertainty (pm): ±10b ±25 d ±4 b, c ±10 c, d

Reference : Internal gas cell

Resolution bandwidth (FWHM) e (nm) : 0.05

Wavelength linearity (nm): ±0.003

Wavelength repeatability (nm): <0.001

Analysis modes: WDM, EDFA, drift, spectral transmittance, FP, DFB

POWER MEASUREMENT

Dynamic range (dBm) (per channel) : –80 h to 18

Maximum total safe power (dBm): 23

Absolute power uncertainty (dB) : ±0.5

Power repeatability (dB) : ±0.02

OPTICAL MEASUREMENT

Optical rejection ratio at 1550 nm (dB):  at 0.2 nm (25 GHz): 35 (40 typical);  at 0.4 nm (50 GHz): 45 (50 typical)

Channel spacing: 12.5 to 200 GHz, CWDM

PDL at 1550 nm (dB): ±0.06

ORL (dB): ≥40

Measurement time (s) (includes scanning, analysis and display): <1

OPTICAL MEASUREMENT

Commissioning assistant

Modulation formats: Any, including all coherent/Pol-Mux formats like DP-QPSK, DP-BPSK, DP-8-QAM, DP-16-QAM, DP-64-QAM

Data signals: Up to 400 Gbit/s

Measurements time: 1 min and 40 s (100 scans) for trace with all channels on.;  <5 s for traces with a single channel off.

GENERAL SPECIFICATIONS a

Size (H x W x D): 75 mm x 159 mm x 185 mm (3 in x 6 1 ⁄4 in x 7 5⁄16 in)

Weight: 1.4 kg (3.1 lb)

Temperature

Operating: 0 °C to 40 °C (32 °F to 104 °F)

Storage: —40 °C to 50 °C (—40 °F to 122 °F)

Relative humidity: < 95% non-condensing

Connectors: EI (EXFO UPC universal interface); EA (EXFO APC universal interface)
