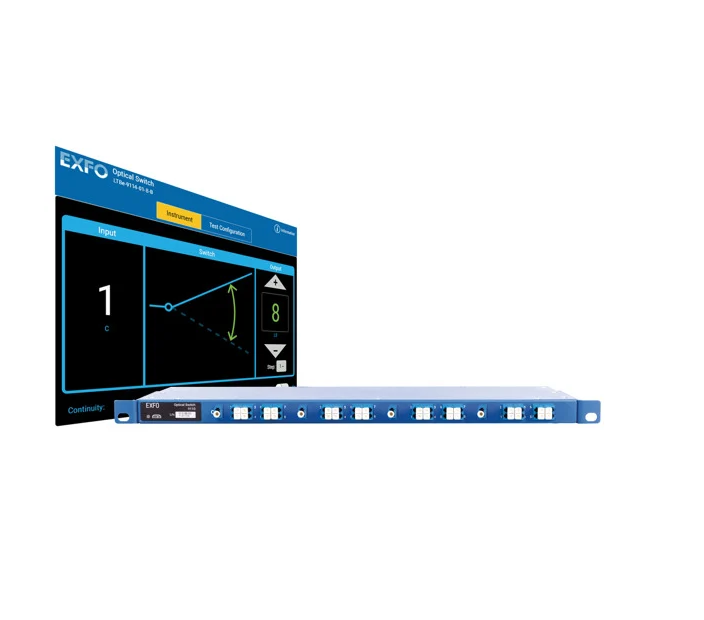

EXFO LTBe-9110-01-08 MMems Optical Switch (8CH)

Switch :1×8

Insertion loss (dB):1.2

Operating wavelength (nm): 1240 to 1680

Repeatability (dB) : ±0.02

Backreflection (dB) : –50

Crosstalk (dB) (typical): 50 (60)

Polarization-dependent loss (dB) : 0.15

Switching time (ms) : < 30

Fiber type Singlemode: 9/125 µm

Input power (damage threshold) (dBm): 27

GENERAL SPECIFICATIONS

Size (H x W x D): 22 mm x 440 mm x 203 mm (14/16 in x 17 5/16 in x 8 in)

Switch life: 1 billion (109) cycles minimum

Temperature

Operating: 0 °C to 40 °C (32 °F to 104 °F)

Storage: —40 °C to 70 °C (—40 °F to 158 °F)

Maximum relative humidity: 80 % non-condensing at 40 °C

Operation: LTBe-9110 must be connected to an EXFO platform using the provided USB cable.

Supported platforms: LTB-1, LTB-2, LTB-8, LTB-12 and FTB-4 Pro.

Instrument drivers: IVI drivers, SCPI commands and REST API

Remote control: Via LTB and FTB platform services: GPIB (IEEE-488.1, IEEE-488.2), Ethernet and RS-232

Standard accessories: USB cable, user guide g, rackmount bracket and test report
