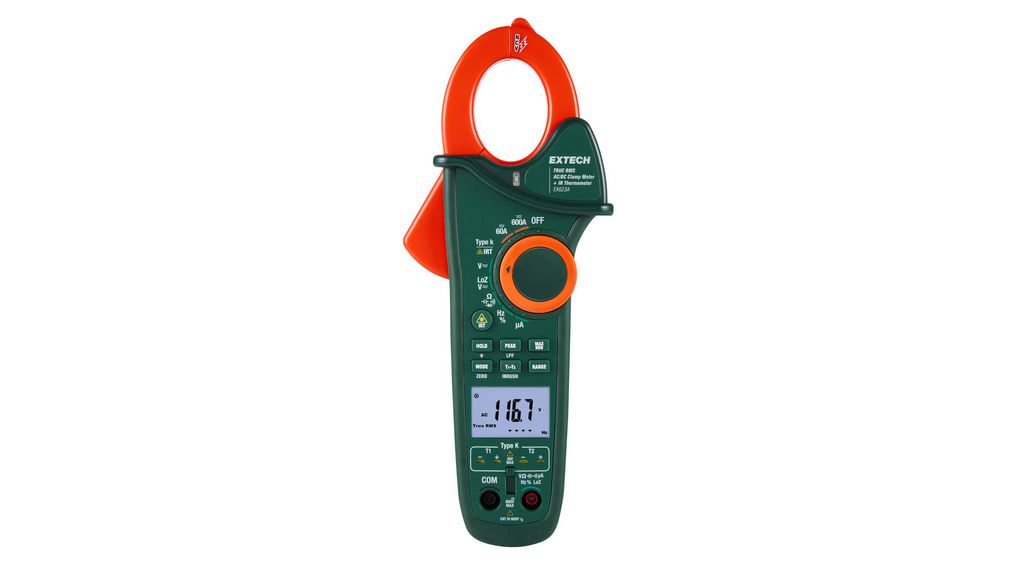

EXTECH EX623A Dual Input Clamp Meter (600 A; True RMS; IR + Dual Type K)

Type : AC+DC

True RMS : True RMS

Display Counts : 6000

Jaw Size : 32 mm (1.25 in)

AC Current : 0.01 A to 600 A

DC Current : 0.01 A to 600 A

Basic ACA Accuracy : ±(1.5% + 5d)

AC Voltage : 0.1 mV to 600 V

DC Voltage : 0.1 mV to 600 V

µA Current : 0.1 µA to 600 µA

Resistance : 0.1 Ω to 60 M Ω

Capacitance : 0.001 nF to 40 mF

Frequency (Clamp) : 0.1 Hz to 400 Hz

Frequency : 0.001 Hz to 100 kHz

Duty Cycle : 0.5% to 99.0%

Type K Temperature : -50°C to 1000°C (-58°F to 1832°F)

Infrared Temperature : -50°C to 270°C (-58°F to 518°F)

Distance to Spot Ratio : 8:1

NCV Detector : Yes

Peak Hold : Yes

Inrush (100 ms) : Yes

LoZ : Yes

Low Pass Filter : Yes

Safety Category : CAT III-600 V

Operating Temperature : 0°C to 50°C (32°F to 122°F)

Dimensions : 241 mm × 96 mm × 45 mm (9.4 in × 3.7 in × 1.74 in)

Weight : 315 g (11.11 oz)
