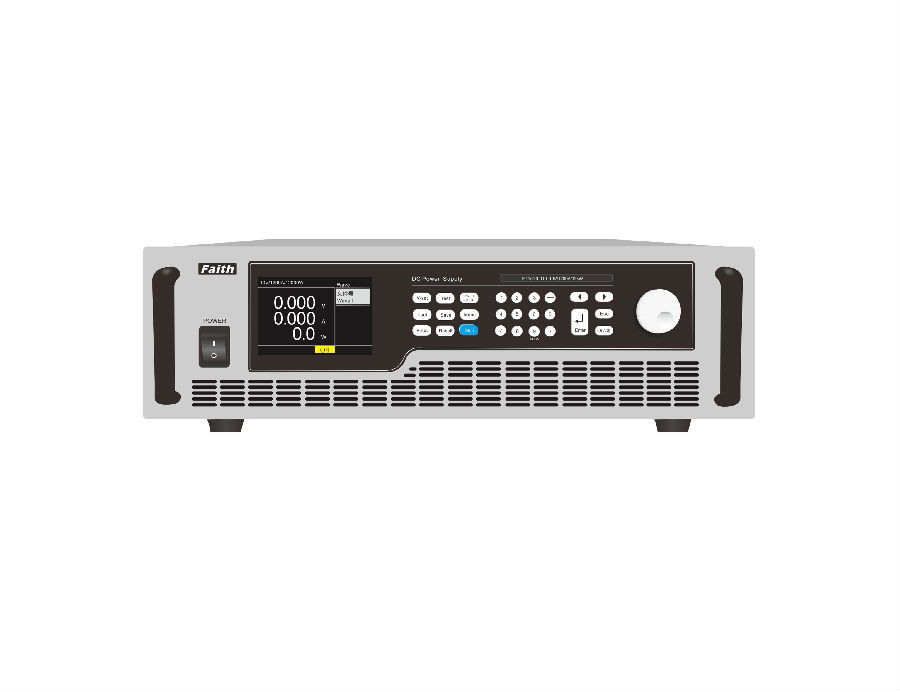

Faith FTG050-050 Modular High-power Programmable DC Power Supply (50V, 100A, 5kW)

Voltage: 0~50V

Current: 0~100A

Power: 5KW

Dimension W x H x D: 482.6mm x 132.0mm x 694.5mm

Weight: 18.5kg

AC Input: 3 Phase input, 340VAC ~ 420VAC, 47Hz ~ 63Hz

Output Voltage: 0 ~ rated voltage (Max 1500V)

Output Current: 0 ~ rated current (Max 10000A)

Output Power: 0 ~ rated power (Max 600kW)

Efficiency: 0.87(Typical)

Line Regulation: Voltage: 0.01%F.S.; Current: 0.05%F.S.

Load Regulation: Voltage: 0.02%F.S.; Current: 0.1%F.S.

Analog Programming: V/I control; Support programming voltage: DC 0 ~ 5V/DC 0 ~ 10V input

Voltage Measurement Accuracy: 0.1%+0.1%F.S.

Current Measurement Accuracy: 0.1%+0.2%F.S.

Voltage/Current Monitoring: Voltage/Current monitoring output voltage: DC 0 ~ 10V

Protection: OVP/OCP/OPP/RVP/LVP/OTP

Transient Response: Typical 1ms

Voltage Temperature Coefficient: 20ppm/℃

Current Temperature Coefficient: 40ppm/℃

Display: 4.3’’ TFT color LCD

Operation: Function key, number key, and knobs

Communication: Standard RS232, LAN, optional GPIB

Memory capacity: 20 groups of fast recall parameters + 10 sequence files+ 1 waveform file

Cooling: Air cooling

Working Temperature: 0℃～40℃

Storage Temperature: -20℃～70℃

Altitude: <2000m
