FLUKE FLUKE-1587 FC Insulation Multimeters (1000V, 2GΩ, wireless) | EMIN.COM.MM

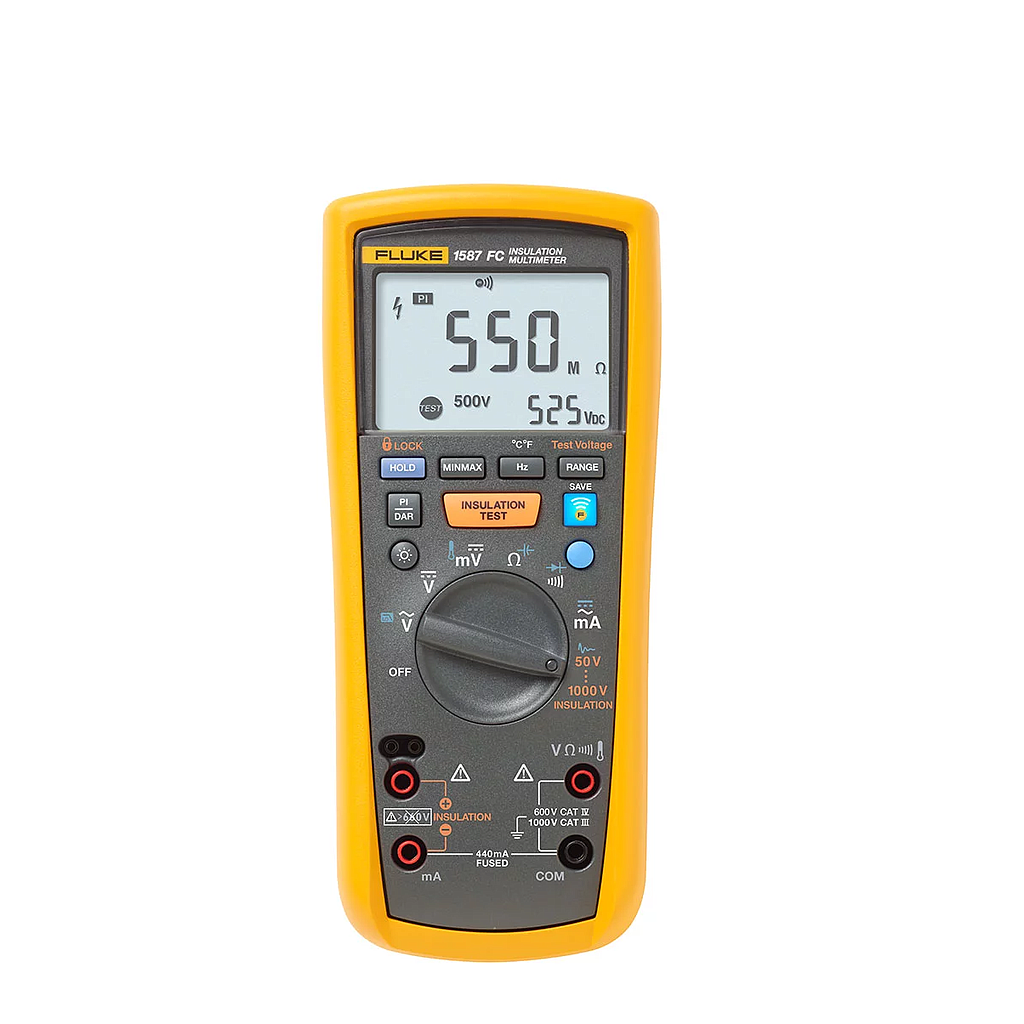

FLUKE FLUKE-1587 FC Insulation Multimeters (1000V, 2GΩ, wireless)

Name: FLUKE FLUKE-1587 FC Insulation Multimeters (1000V, 2GΩ, wireless)
Brand: FLUKE
Price: 6492271.5 MMK
Availability: OutOfStock

ManufacturerFLUKE(View more products from this manufacturer)

ModelFLUKE-1587 FC

P/N4691215

OriginUSA

Warranty12 months

6,492,272 Kyat

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

DCV: 1000 V /± 0.09%+2 dgt

ACV: 1000 V /±2%+3 dgt

DCA: 400mA /± 0.2%+2 dgt

ACA: 400mA /± 0.9%+2 dgt

R: 50 MΩ /±0.9%+2 dgt

C: 9,999 µF /±(1.2%+2)

F: 100 kHz /±(0.1%+1)

T type K:-40.0 °C to 537 °C (-40.0 °F to 998 °F)

Diode Test: yes

Test Voltages: 50, 100, 250, 500, 1000 V

Insulation resistance range: 2 GΩ

Size: 203 x 100 x 50 mm (with holster)

Weight: 624 g

IP Rating: IP40

Includes:

Remote probe

Test leads

Alligator clips

K-type thermocouple

Soft case

User documentation

Specifications

Voltage DC

Maximum Voltage:	1000 V
Accuracy:	1577: ±(0.2%+2)
	1587: ±(0.09%+2)
Maximum Resolution:	0.001V

Voltage AC

Maximum Voltage:	1000 V
Accuracy:	1577: ±(2%+3)
	1587: ±(2%+3)
AC Bandwidth:	1587: 5kHz*
	*with low pass filter; 3db @ 800 Hz
Maximum Resolution:	0.1 mV

Current DC

Maximum Amps:	400mA
Amps Accuracy:	1577: ±(1.0%+2)
	1587: ±(0.2%+2)
Maximum Resolution:	0.01 mA

Current AC

Maximum Amps:	400mA
Amps Accuracy:	1577: ±(2.0%+2)*
	1587: ±(1.5%+2)*
	* 1kHz bandwidth
Maximum Resolution:	0.01 mA

Resistance

Maximum Resistance:	50 MΩ
Accuracy:	1577: ±(1.2%+2)
	1587: ±(0.9%+2)
Maximum Resolution:	0.1Ω

Capacitance(1587 only)

Maximum Capacitance:	9,999 µF
Accuracy:	±(1.2%+2)
Maximum Resolution:	1 nF

Frequency (1587 only)

Maximum Frequency:	100 kHz
Accuracy:	±(0.1%+1)
Maximum Resolution:	0.01 Hz

Temperature Measurement (1587 only)

	-40.0 °C to 537 °C
	-40.0 °F to 998 °F
	excluding probe

Diode Test (1587 only)

Range:	6 V
Resolution:	1 mV
Accuracy:	±(2 % + 1)

Insulation Test

Minimum Test Current @ 1kΩ/V:

1mA

Test Voltages:

1577:	500, 1000 V
1587:	50, 100, 250, 500, 1000 V

Maximum Resistance per Test Voltage:

50V:
100V:
250V:
500V:
1000V:	1577: 600 MΩ
	1587: 2 GΩ

Maximum Resolution per Test Voltage:

50V:	0.01 MΩ
100V:	0.01 MΩ
250V:	0.1 MΩ
500V:	0.1 MΩ
1000V:	0.1 MΩ

Accuracy per Test Voltage:

50V:	±(3 % + 5)
100V:	±(3 % + 5)
250V:	±(1.5 % + 5)
500V:	1577: ±(2.0 % + 5)
	1587: ±(1.5 % + 5)
1000V:	1577: ±(2.0 % + 5)
	1587: ±(1.5 % + 5) to 600 MΩ, ±(10 % + 3) above 600 MΩ

Environmental Specifications

Operating temperature

–20 °C to +55 °C

Storage temperature

-40°C to +60°C

Humidity (Without Condensation)

	0% - 95% (10 °C – 30 °C)
	0% - 75% (30 °C – 40 °C)
	0% - 40% (40 °C – 55 °C)

Operating Altitude

2000 m

Safety Specifications

Overvoltage category

Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V

Agency Approvals

2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V

Mechanical & General Specifications

Size

203 x 100 x 50 mm (with holster)

Weight

624 g

Warranty

Battery life Alkaline

Meter use:	1000 hours
Insulation test use:	Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.

IP Rating

IP40
