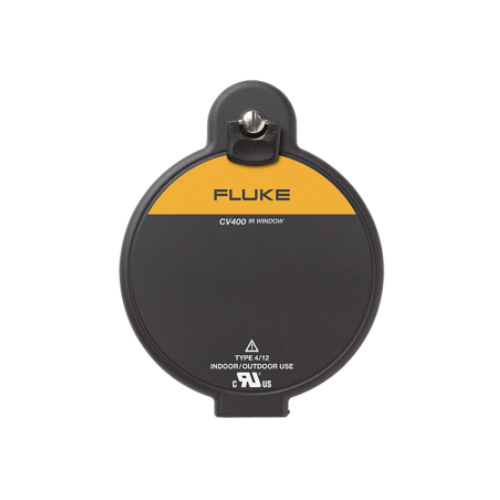

FLUKE FLUKE-CV400 Infrared Window (4 in)

General Specifications

Size: 95 mm (4 in)

Voltage range: Any

NEMA environment type: Type 4/12 (indoor/outdoor)

Operating temperature: -40°C to +232°C (-40° F to +450°F) and +260°C (500°F) intermittent

Compatible with all Fluke cameras: Yes

Jam nut locking system: Yes

Cover and fastener permanently attached: Yes

Single-hole install: Yes

Hand turn and security key door latch options: Yes

Visual inspection and fusion capable: Yes

Short/Mid/Long-wave IR and UV capable: Yes

Ratings and Testing

CSA type rating: Type 4

IP rating: IP67 at TUV

Install

Actual mounting hole diameter required: 115.42 mm (4.544 in)

Overall window height: 189.3 mm (7.45 in)

Overall window width: 147.1 mm (5.79 in)

Overall window thickness: 23.0 mm (0.90 in)

Door latch: Hand Turn

Optics

Optic insert diameter: 95 mm (3.74 in)

Viewing aperture diameter: 87.63 mm (3.450 in)

Viewing aperture area: 6032 mm2 (9.35 in2)

Thickness: 4 mm (0.16 in)
