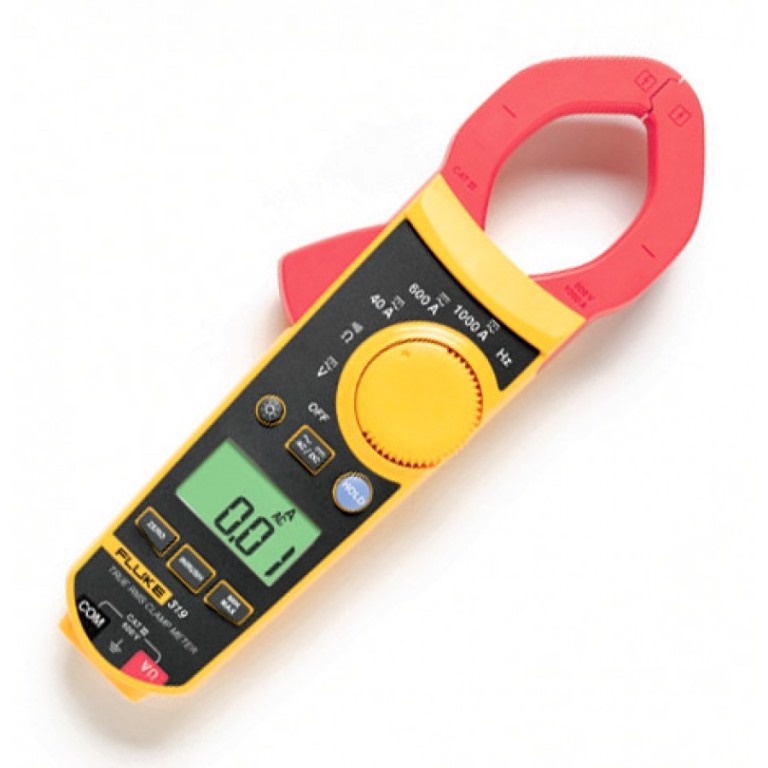

FLUKE 319 AC/DC Clamp Meter (1000 A)

Name: FLUKE 319 AC/DC Clamp Meter (1000 A)
Brand: FLUKE

In Stock: 1 Unit

ManufacturerFLUKE

Model319

OriginChina

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

ACA: 40.00 A /1.6%, 600.0 A, 1000 A /1.5%

DCA: 40.00 A /1.6%, 600.0 A, 1000 A /1.5%

ACV: 0.1V ~ 600.0 V /1.5%

DCV: 0.1V ~ 600.0 V /1%

R: 400.0 Ω, 4000 Ω /%

Continuity: ≤ 30 Ω

F: 5.0 - 500.0 Hz /0.5%

Jaw Diameter: 1.45 in (37 mm)

Dimensions: (162.4 mm x 58.25 mm x 30.5 mm)

Weight:384 g

Includes: Test Leads, Soft Carrying Case, Three AAA batteries (Installed), User Manual

Manufacturer: Fluke

Made in China

General Specifications

Digital Display

6000 count resolution

Low Battery Indication

Displays a signal when the batteries are below their required voltage

Power Source

Three AAA IEC LR03 batteries

Clamp Opening Size

1.45 in (37 mm)

Jaw Diameter

1.45 in (37 mm)

Dimensions (L x W x H)

	6.39 in x 2.29 in x 1.20 in
	(162.4 mm x 58.25 mm x 30.5 mm)

Weight

approximately 13.5 oz (384 g) (batteries included)

Auto Range

Available in Ohms

Safety

	CE
	EN/IEC 61010-1 and IEC 61010-2-032
	Measurement Category: 600V CAT III

317 Electrical Specifications

Current AC

Range	40.00 A, 600.0 A
Resolution	0.01 A, 0.1 A
Accuracy	1.6% ± 6 digit (50-60 Hz) {40 A}
	2.5% ± 8 digit (60-500 Hz) {40 A}
	1.5% ± 5 digit (50-60 Hz) {600 A}
	2.5% ± 5 digit (60-500 Hz) {600 A}
Crest Factor add 2% into spec for CF > 2	3.0 Max @ 500 A, 2.5 Max @ 600 A
AC response	rms

Current DC

Range	40.00 A, 600.0 A
Resolution	0.01 A, 0.1 A
Accuracy	1.6% ± 6 digit (40 A)
	1.5% ± 5 digit (600 A)

Voltage AC

Range	600.0 V
Resolution	0.1 V
Accuracy	1.5% ± 5 digit (20-500Hz)
AC response	rms

Voltage DC

Range	600.0 V
Resolution	0.1 V
Accuracy	1% ± 4 digit

Resistance

Range	400.0 Ω, 4000 Ω
Resolution	0.1 Ω, 1 Ω
Accuracy	1% ± 5 digit

Continuity

≤ 30 Ω

Inrush

Integration time

N/A

Frequency

Range	N/A
Accuracy	N/A
Trigger Level	N/A

319 Electrical Specifications

Current AC

Range	40.00 A, 600.0 A, 1000 A
Resolution	0.01 A, 0.1 A, 1 A
Accuracy	1.6% ± 6 digit (50-60 Hz) {40 A}
	2.5% ± 8 digit (60-500 Hz) {40 A}
	1.5% ± 5 digit (50-60 Hz) {600/1000 A}
	2.5% ± 5 digit (60-500 Hz) {600/1000 A}
Crest Factor add 2% into spec for CF > 2	3.0 Max @ 500 A, 2.5 Max @ 600 A, 1.4 Max @ 1000 A
AC response	rms

Current DC

Range	40.00 A, 600.0 A, 1000 A
Resolution	0.01 A, 0.1 A, 1 A
Accuracy	1.6% ± 6 digit (40 A)
	1.5% ± 5 digit (600/1000 A)

Voltage AC

Range	600.0 V
Resolution	0.1 V
Accuracy	1.5% ± 5 digit (20-500Hz)
AC response	rms

Voltage DC

Range	600.0 V
Resolution	0.1 V
Accuracy	1% ± 4 digit

Resistance

Range	400.0 Ω
	4000 Ω
Resolution	0.1 Ω
	1 Ω
Accuracy	1% ± 5 digit

Continuity

≤ 30 Ω

Inrush

Integration time

100 ms

Frequency

Range	5.0 - 500.0 Hz
Accuracy	0.5% ± 5 digit
Trigger Level	10 - 100 Hz ≥ 5 A, 5 - 10 Hz, 100 - 500 Hz ≥ 10 A

The accuracy specifications aply at 73 °F ± 41 °F (23 °C ± 5 °C)

Below 64 °F and above 82 °F (18 °C and above 28 °C) accuracy degrades at (0.1) times specification per °C.

True rms for ac V and ac A accuracy is specified from 5% to 100% of range.

Environmental Specifications

Operating Temperature

14°F to 122°F (-10 °C to 50 °C)

Storage Temperature

-40 °F to 140 °F (-40 °C to 60 °C)

Operating Humidity

	Non condensing (< 50 °F) (< 10 °C)
	90 % RH (50 °F to 86 °F) (10 °C to 30 °C)
	75 % RH (86 °F to 104 °F) (30 °C to 40 °C)
	45 % RH (104 °F to 122 °F) (40 °C to 50 °C)
	(Without Condensation)
