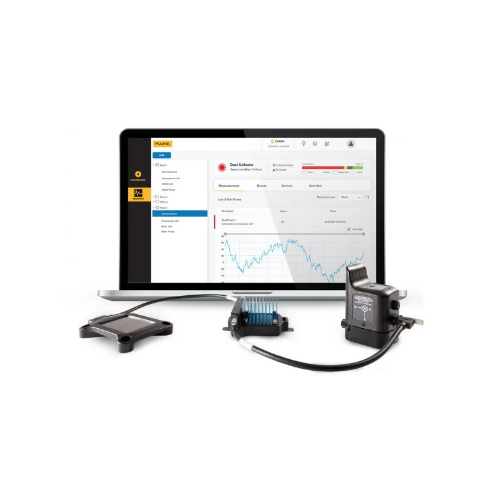

FLUKE 3562-8 PK Screening Vibration Sensor System

Data Measurement & Transmission

Measurement interval: Configurable, default is every 60 seconds

Transmission interval: Configurable, default is every 60 seconds

Vibration (overall vibration values)

Frequency range: 6 Hz – 1,000 Hz

Amplitude range Autorange: +/- 2g; (X, Y, Z) 4g, 16g

Sampling frequency: 3,200 Hz

Temperature

Measurement range: -40°C to 85°C (-40°F to 185°F)

Accuracy: +/-2°C (3.6°F)

Power

Thermoelectric generator: Minimum -9°C (15°F) difference between surface and ambient

Indoor photovoltaic: Minimum 200 Lux

Outdoor photovoltaic: Minimum 200 Lux

Energy storage: 8 hours @ 60-second sample rate, no power source

Ingress protection class: IP66

Temperature sensor: Operation: -40°C to 85°C (-40°F to 185°F); Storage: -40°C to 85°C (-40°F to 185°F)

Vibration resistance: 10-60Hz @ 0.69mm 60-3,200Hz @ 5.0g

Shock & impact resistance: 100g @ 6 mS

Sensor size: Approx. 53mm x 48mm x 81mm (2.1" x 1.88" x 3.2")

TEG harvester size: Approx. 74mm x 58mm x 36mm (2.9" x 2.3" x 1.4")

PV harvester size: Approx. 86mm x 71mm x 13mm (3.4" x 2.8" x 0.5")

Sensor weight: 180g (0.39 pounds)

Mounting: Magnet, epoxy, screw

Materials: PC-PET / Aluminum
