LCD Screen
Type:7 inch Capacitive touch screen
Refresh rate:30 hz
LED backlight:Adjust display brightness for optimal viewing
Communication
Wireless interface:WiFi 802.11b/g/n, Range: 33 feet (10.06 meters)
Data transfer:USB and micro HDMI cable
FlukeConnect™:Save and share images via FlukeConnect™
Instant upload to the cloud:Yes, with FlukeConnect™
General Features
Color palettes:Visible light, grayscale or inverted
Internal memory:6 GB
Physical buttons:Intuitive, easy to navigate button technology, 4 functional keys, 4 navigational, one capture or select button
Carrying case:Protective EVA case
Strap:Hand Strap and Neck Strap included
Power adapter:AC adapter/battery charger input
Battery:6400mAh 3.7 volt rechargeable internal li-ion battery
Battery life:3 hours at 50 % LED brightness
Dimensions:6.98 x 8.85 inches (17.73 x 22.48 cm)
Weight:1.95 lbs (0.88 Kg)
General Specifications and Safety
Tablet:IP54, dust protected and protected against water projected from a nozzle
Drop test:2 meter (6.56 feet)
Operating temperature:0 °C to 45 °C (32 °F to 113 °F), 50 °C (122 °F) for less than 10 minutes
Storage temperature:-40 °C to 60 °C (-40 °F to 140 °F)
Operating humidity:90 % at 35 °C (95 °F), 75 % at 40 °C (104 °F), 45 % at 50 °C (122 °F)
Video Borescope Probe Specifications:8.5mm Dual View (1.2M) (Included with DS703 FC)
Outer Diameter of Tip:8.5mm
Length:1.2 meter
Resolution:1280 x 720 (720p) (HD)
Depth of Field (min):35.5mm (Front) 35.5mm (Side)
Depth of Field (max:)111.7mm (Front) 111.7mm (Side)
Field of View:75 degrees
Up-is-Up™ technology:Yes
Length of Distal Tip:50mm
Outer Diameter of Conduit:6.1mm
Conduit Pliability:Flexible but compliant
Waterproof:Waterproof to 2 psi
LED Type:Standard white
Still image format:JPG
Video recording format:MPEG compression
Digital zoom:Adjustable from 1x to 8x zoom
Camera Direction:Front and Side View
Streaming video:Via HDMI
Includings

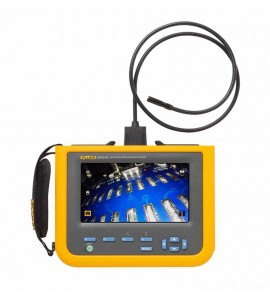

Diagnostic Videoscope with 1.2m, 8.5mm semi-rigid probe
Hand and neck strap
USB cable, AC power supply/battery charger
TPAK magnetic hanger, protective EVA case
