Key Features
IFOV (spatial resolution):7.6 mRad
Infrared resolution:120 x 90 (10,800 pixels)
Field of view:50° H x 38° V
Distance to spot:130:1
Temperature measurement range (not calibrated below -10 °C):-20 °C to 150 °C
Focus system:Fixed focus, minimum focus distance 22.8 cm
USBMini: USB used to transfer image to PC
Wifi:Yes
Fluke Connect™ Instant Upload:Yes, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect™ system or your local server for storage and viewing on your PC (802.11 bgn (2.4 GHz)). Coming soon
Image quality
IR-Fusion technology:Yes, adds the context of the visible details to your infrared image
AutoBlend mode:Continuous 0% to 100%
Touchscreen display:3.5’’ (landscape), 320 x 240 LCD
Rugged, ergonomic design:Yes
Thermal sensitivity (NETD):60 mK
Frame rate:9 Hz
Data storage and image capture
Memory:≥ 2GB internal flash memory
Image capture, review, save mechanism:One-handed image capture, review, and save capability
Image file formats:Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files
Software:Fluke Connect® desktop software—full analysis and reporting software with access to the Fluke Connect system
Export file formats with software:JPG, IS2
Measurement range:-20 °C ~ 150 °C
Battery
Batteries (rechargable):Internal rechargeable lithium ion battery
Battery life:≥ 2 hours continuous (without WiFi)
Battery charging time:≤ 1.5 hours
Battery charging system:Micro USB cord from product to PC
AC operation:With separate AC to USB adapter. Not included in box.
Power saving:Automatic Shutdown:5, 10, 15 and 20 minutes or never
Temperature measurement
Temperature measurement range (not calibrated below -10 °C):-20 °C to 150 °C
Accuracy:Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2%
On-screen emissivity correction:Yes
On-screen reflected background temperature compensation:Yes
Color palettes
Standard palettes:6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale
General specifications
Infrared spectral band:8 μm to 14 μm (long wave)
Operating temperature:-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature:-40 °C to +70 °C (-40 °F to 158 °F)
Relative humidity:95% non-condensing
Center-point temperature:Yes
Spot temperature:Hot and cold spot markers
Safety:EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)
Electromagnetic compatibility:EN301 489-1 V2.1.1 EN301489-17 V3.1.1
US FCC:CFR, Part 15C
Vibration and shock:2G, IEC 68-2-6 and 25G, IEC 68-2-29
Drop:1 meter
Size (H x W x L):8.9 cm x 12.7 cm x 2.5 cm(3.5 in x 5.0 in x 1.0 in)
Weight (battery included):0.233 kg (0.514 lb)
Enclosure rating:IP54
Supported languagesCzech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
Includes:
Thermal imager
Soft case
Lanyard
USB cable

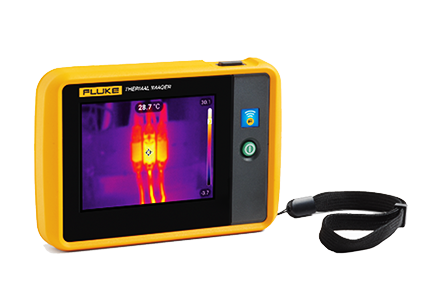

Portable thermal camera for industrial inspection
In the right place. At the right time. With the right tool.
The bigger the problem, the faster you need to solve it. The Fluke Pocket Thermal Camera puts the power to minimize downtime in everyone’s hands. The first line of defense for easy troubleshooting. Stop fighting fires on the job, start preventing them.
On the job, because it does the job.
A camera small enough to carry every day without worry. Always at hand. Stands up to dirt and water. Can survive a 1-meter drop. Now enhanced infrared inspections are right in your pocket for quick temperature scans of electrical equipment, machinery and other assets.
Automatically save your thermal images to the right folders.
With Fluke Connect Asset Tagging you eliminate the tedium of sorting and organizing your infrared images. By simply scanning your asset’s QR code or barcode, your infrared image and all of your date and time stamped information will be stored to your predefined folders. Send via WiFi or automatically upload once you connect to the network or computer via USB. It's about time. Now you can more efficiently save, find and report on issues before they become problems.
Get your preferred level of infrared every time.
The 3.5” LCD touchscreen offers IR-Fusion™ to blend a visible light image with an infrared image to more easily locate problems. Simply slide your finger across the screen to adjust the setting.
