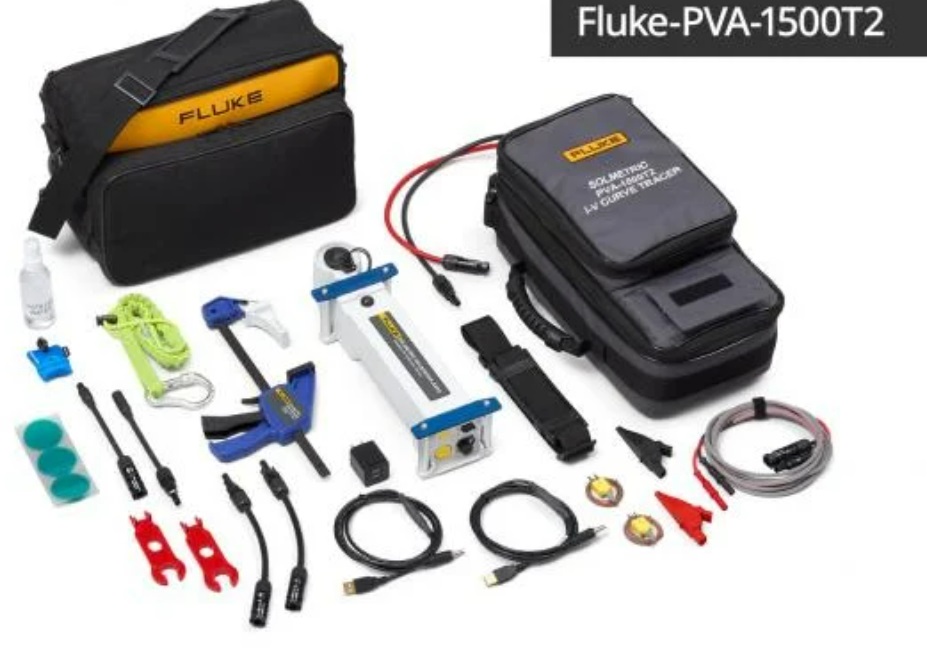

FLUKE FLUKE-PVA-1500T2 PV Analyzer (1500V DC, 10A)

Voltage Range (Voc): 20 to 1500V DC

Maximum Current Range (Isc):

Module Efficiency <19%: 0 to 30A DC

Module Efficiency ≥19%: 0 to 10A DC

Voltage Accuracy (0 °C to 45 °C): ±(0.5% ±0.25V)

Current Accuracy (0 °C to 45 °C): ±(0.5% ±0.04A)

Power Accuracy (0 °C to 45 °C): ±(1.7 % + 1.0 W) (current ≥3 A, module efficiency <19 %)

Voltage Resolution: 25 mV

Current Resolution: 2 mA

Measurement Throughput:

Sweep-to-sweep delay (@VOC ≤ 1350V): <9 seconds

Max number of I-V sweeps per hour (@VOC ≤ 1350V): 400 sweeps/hr

Max megawatts measured per hour: 3.5 MW/hr

Thermal Capacity:

# sweeps at 18 s sweep-to-sweep delay: unlimited (25 °C, 77 °F ambient); 550 (45 °C, 113 °F ambient)

# sweeps at 9s sweep-to-sweep delay: unlimited (25 °C, 77 °F ambient); 330 (45 °C, 113 °F ambient)

I-V Trace Points: 100 or 500 (selectable)

I-V Sweep Duration: 0.05 to 2 seconds (typically 0.2 seconds for PV strings)

Operating Temperature Range: 0 °C to 45 °C, 32 °F to 113 °F

Storage Temperature Range: -20 °C to 65 °C, -4 °F to 149 °F

Operating Humidity: <90 % RH, non-condensing. Avoid exposing a cold instrument to warm and humid air as condensation will result. Store the instrument in the same conditions in which the instrument will be used.

Altitude: 2000 m max

Battery Charging Time: 6 hr

Battery Run Time: Approx. 8 hr

Safety and Regulatory: CAT III 1500V; IEC 61010-1: Pollution Degree 2

Warning Features: Over-voltage, over-current, over-temperature, reverse polarity

PV Connector: Staubli MC4-EVO2

Charging/Charged LED: Yes

In-the-field firmware update-ready: Yes

Interface to Tablet/Laptop: Wi-Fi interface between user tablet or laptop, I-V unit and SolSensor™

Weight: 6.6 kg, 14.55 lb

Height: 43.2 cm, 1.41 ft (including test lead and strain reliefs)

Width: 21.6 cm, 8.50 in

Depth: 15.2 cm, 5.98 in
