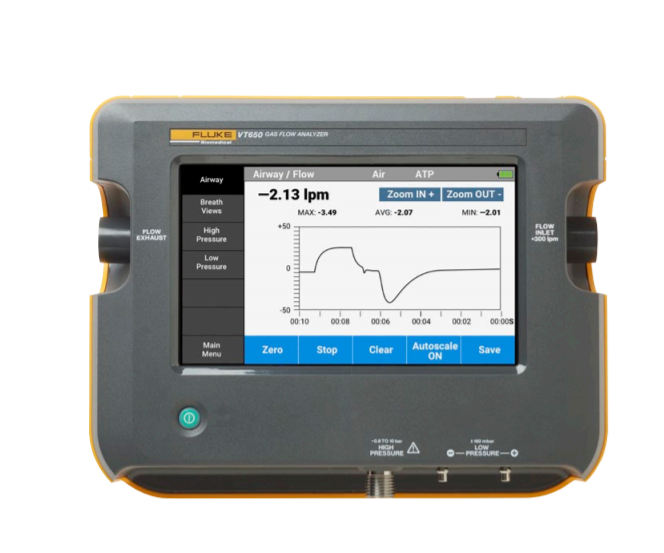

FLUKE VT650 Gas Flow Analyzer Ventilator Tester

Battery life hours: 8 hrs

Charge time in hours: 5 hrs, typical

Memory: internal memory

Connection type: USB, Micro-B device port

Weight: 3.6 lb (1.6 kg)

Display: 17.8 cm (7 in)

Single full-range channel √

Flow

Full range flow channel (includes both low and high flow)

Range: ±300 slpm

Accuracy (air): 1.7 % or 0.04 slpm

Volume

Range: ±100 l

Accuracy: ±1.75 % or 0.02 l

Pressure

High pressure

Range: -0.8 to 10 bar

Accuracy: ±1 % or ±0.007 bar

Differential low pressure

Range: ±160 mbar

Accuracy: ±0.5 % or ±0.1 mbar

Airway pressure

Range: ±160 mbar

Accuracy: ±0.5 % or ±0.1 mbar

Barometric pressure

Range: 550 to 1240 mbar

Accuracy: ±1 % or ±5 mbar

Other

Temperature

Range: 0 to 50 °C

Accuracy: ±0.5 °C

Resolution: 0.1 °C

Humidity

Range: 0 to 100 % RH

Accuracy:

±3 % RH (20 to 80 % RH)

±5 % RH (20< or >80 % RH)

Oxygen

Range: 0 to 100 %

Accuracy: ±2 %

Breath parameters

Inspiratory tidal volume range: 0 to 60 l

Inspiratory tidal volume accuracy: ±1.75% or 0.02 l

Expiratory tidal volume range: 0 to 60 l

Expiratory tidal volume accuracy: ±1.75 % or 0.02 l

Minute volume range: 0 to 100 l

Minute volume accuracy: ±1.75 % or 0.02 l

Breath rate range: 1 to 1500 bpm

Breath rate accuracy: ±1 %

Includes:

• Bacterial filter (1)

• 1.2 m (4 ft) silicon tubing (2)

• 22 mm ID x 22 mm ID tubing adapters (2)

• 22 mm OD x 22 mm OD tubing adapters (2)

• Tapered 15 mm OD x 33 mm OD tubing adapters (2)

• Flexible 15 mm ID x 22 mm ID tubing adapters (2)

• DISS hand tight nut/nipple to 6.4 mm (1/4 in ) ID hose barb

adapter (1)

• USB serial cable

• AC power adapter

• Detachable carrying handle

• Detachable shoulder strap

• Certificate of Calibration with test data

Optional accessories

ACCU LUNG I Test Lung

ACCU LUNG II Test Lung

VESA Mounting system/test arm
