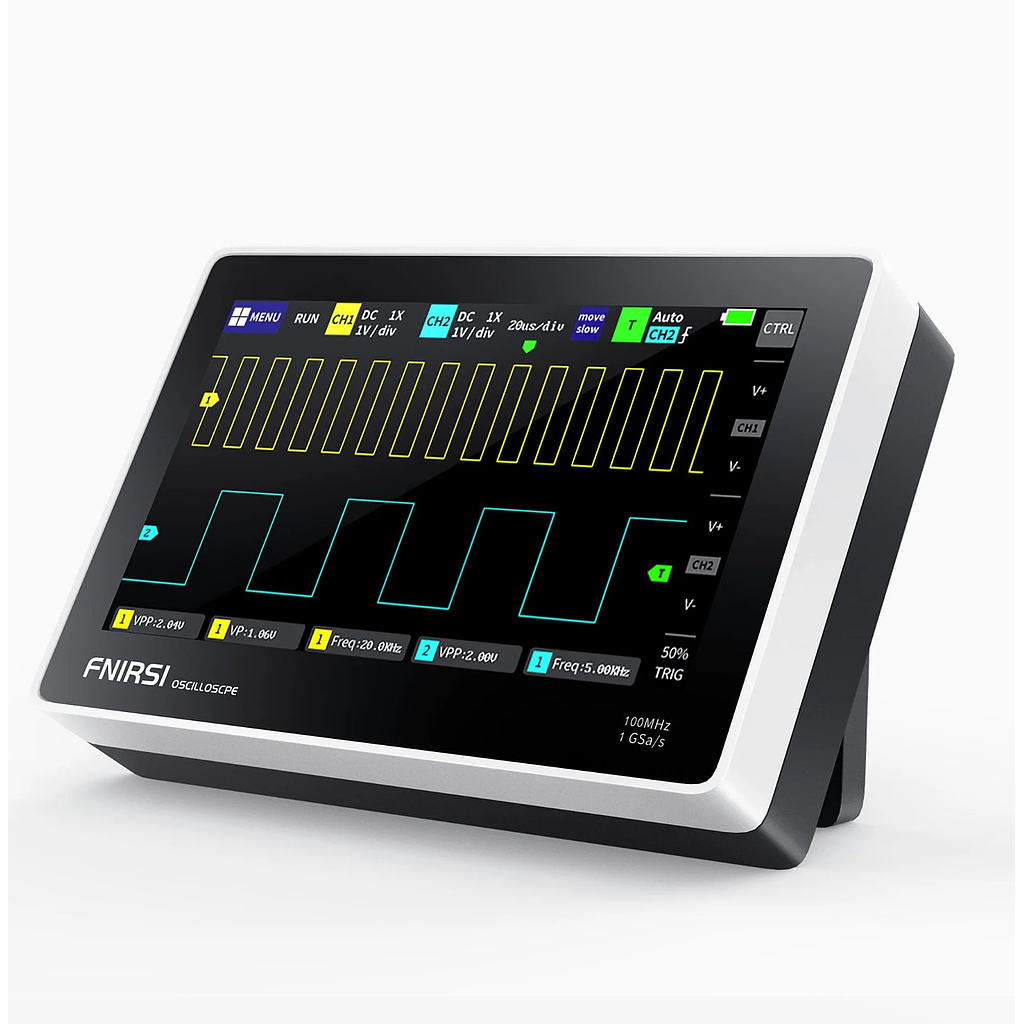

FNIRSI 1013D Touchable Panel Oscilloscope (Dual Channel, 100MHz , 1GS/s)

Channels: 2

Display: 7 inch 800*480 Pixels

Bandwidth: 100MHz

Sampling Rate: 1GSa/s

Rise Time: <3nS

Storage Depth: 240 Kbit

Timebase: 50S~10ns

Vertical Sensitivity: 50mV-500V

Input Resistance: 1MΩ

Trigger Mode: Single / Normal / Auto

Trigger Edge: Rising / Falling

Coupling: AC/DC

Highest Test Voltage: 1X:40V 10X:400V

Cursor: Position XY / Trigger Y

Roll Mode: Support

One-Button AUTO: Support

Waveform Manager: Support (1000 Pic + 1000 Waveform)

Voltage Accuracy: ±2%

Frequency Precision: ±0.01% High Precision

Parameter: 12 Kinds in Total

Power Supply: 6000mah Lithium Battery

Standby: 4 Hours

Extension: USB Export

Charging: Type-C 5V 2A/3A/4A
