Measuring Range: 0-1400μm
Accuracy: ±3% + 2μm
Resolution Ratio: 0.1μm
Calibration
Zero point calibration
Multi-point calibration
Unit: μm / mil
Mini Convex Curvature Radius: 5mm
Mini Concave Curvature Radius: 25mm
Mini Measurement Area Diameter: 20mm
Work Environment: No strong magnetic field
Work Temperature: -10℃ ~ +50℃
Humidity: 20% - 90% RH
Battery: 600mAh Lithium battery
Size: 115 x 48 x 18mm

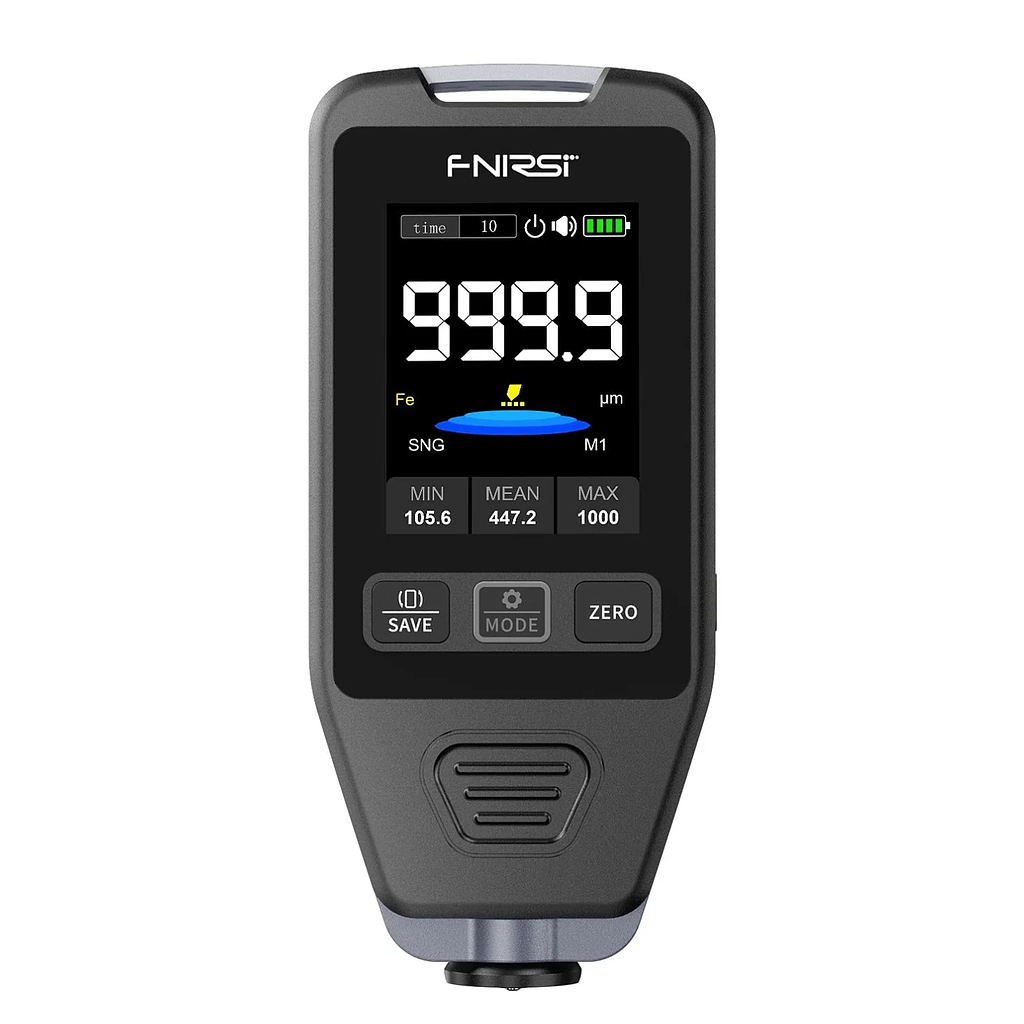

CTG-20 is a coating thickness gauge used to measure the thickness of electroplated coatings or coatings on metal surfaces. It has the ability to measure the thickness of non magnetic coating (such as paint) on magnetic materials such as steel/iron, as well as the thickness of coating (such as paint) on non magnetic materials such as aluminum. Built in precision probe, lithium battery charging. Automatically detect substrate properties and detect coating thickness through electromagnetic induction and eddy current effects. This instrument can non-destructive measure the thickness of the coating, with fast speed and high accuracy. Widely used in manufacturing, chemical industry, automotive and other testing fields.
