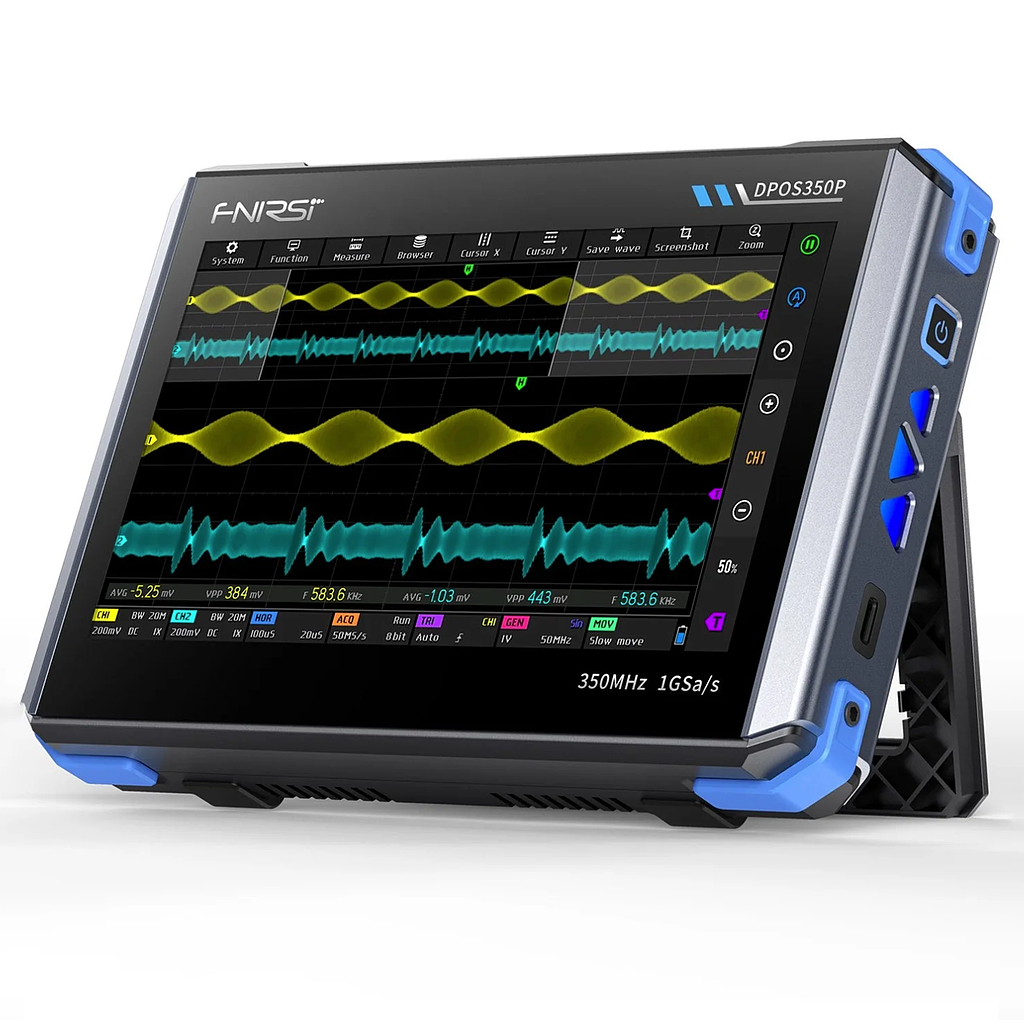

FNIRSI DPOS350P Tablet Oscilloscope (2CH, 350MHz, 1GSPS)

Basic Parameters:

Power-on configuration: 5 preset items

Charging requirements: QC18W - 12V/1.5A (Type-C)

Languages: Chinese / English / Russian / Portuguese

Battery specifications: 3.7V, 8000mAh lithium battery

Screen size: 7 inches

Standby time about 3 hours

Screen resolution: 1024 x 600 pixels

Charging time: Startup ≈ 5 Hours

Screen technology: IPS full viewing angle

Total power consumption: 10W

Interaction mode: capacitive touch screen

Heat dissipation: air cooling

Expansion interface: USB data port

Dimensions: 190mm*128mm*37mm

Automatic shutdown: 15 minutes ~ 1 hour / off

Firmware upgrade: support .iso image upgrade

Storage Temperature Range: -20~60℃

Oscilloscope Parameters:

Analog Channels: 2

Analog bandwidth: 350MHz

Rise time: 1nS

Max sampling rate: 1GSPS

Memory depth: 60Kpts

Input impedance: 1MΩ / 14PF

Time base range: 5nS ~ 50S

Roll time base: 50mS ~ 50S

Vertical sensitivity: 2mV ~ 20V(1X)

Vertical range: 16mV ~ 160V(1X)

DC accuracy: ±2%

Time accuracy: ±0.01%

Input coupling: DC / AC

Probe attenuation: 1X / 10X / 100X

Hardware bandwidth limit: 150M / 20M

High resolution mode: 8bit ~ 16bit

Parameter measurements: 12 types

Signal Generator Parameters:

Waveform types: 14 standard functions + captured waveform

Frequency: 0 ~ 50MHz(sine wave only, other waveforms up to 10M/5M/3M)

Amplitude: 0 ~ 5VPP

Offset: -2.5V ~ +2.5V

Duty cycle: 0.1% ~ 99.9%

Frequency resolution: 1Hz

Amplitude resolution: 1mV

Offset resolution: 1mV

Duty cycle resolution: 0.1%

Customizable captured waveform: 500 groups

Frequency Response Analyzer Section:

Excitation signal frequency: 100Hz ~ 50MHz

Excitation signal amplitude: 0 ~ 5VPP

Excitation signal offset: -2.5V ~ +2.5V

Excitation frequency count: 20 ~ 500

Spectrum Analyzer Part:

Conversion method: FFT

FFT length: 4K ~ 32K

Frequency range: 200KHz ~ 350MHz

Level range: -60dBmV ~ +260dBmV

Package List:

◉ DPOS350P Host *1

◉ QC18W Fast Charger *1 (US or EU Plug)

◉ 350MHz Probe *2

◉ Storage Bag *1

◉ Alligator Clip *1

◉ USB Data Cable *1

◉ User Manual *1

◉ Packing Box *1
