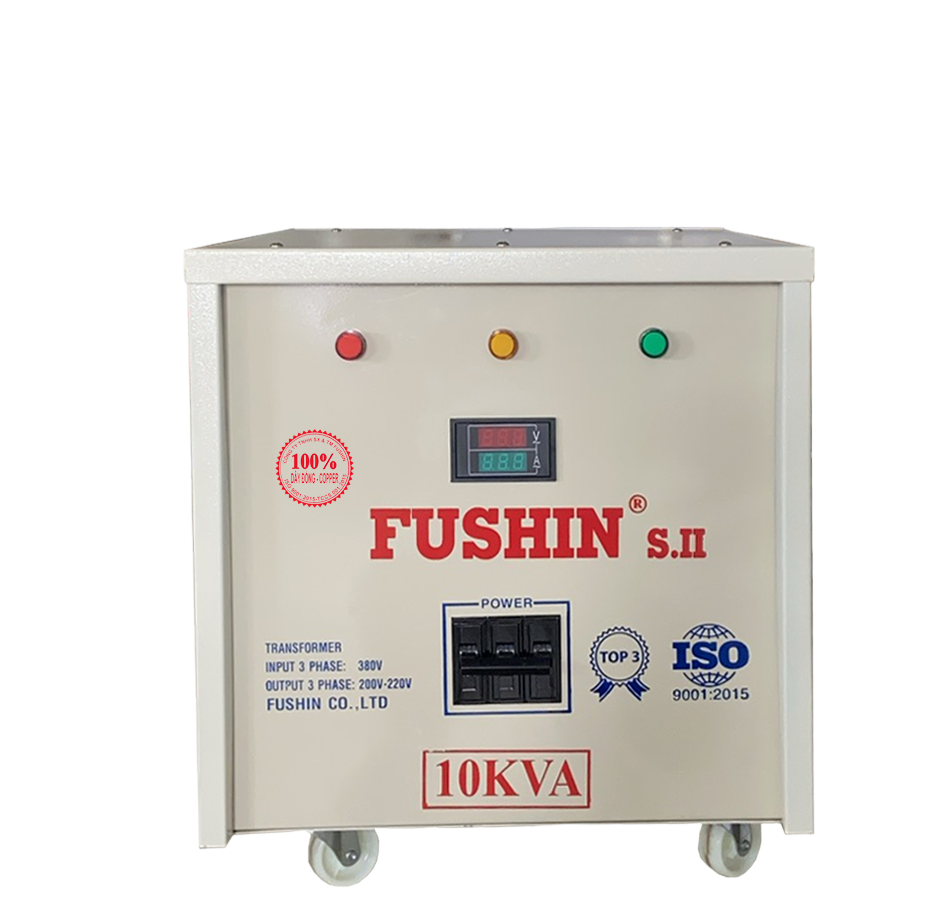

Fushin S.IICU3P-10K Isolated 3-phase Transformer (10KVA, 380V/3P, 50Hz /60Hz)
Manufacturer: Fushin Model: S.IICU3P-10K - Contact
Input voltage: 380V (3-phase)
Output voltage: 200V-220V (3-phase + N)
Frequency: 50Hz/60Hz
Power: 10KVA
Operating principle: Self-cooling transformer
Machine type: Dry-type transformer with electrostatic powder-coated steel casing
Insulation class: Class F
Insulation resistance: Greater than 5MΩ at 1000VDC voltage
Dielectric strength: Tested at 2000V for 1 minute without discharge
Display: Digital Volt-Ampere Indicator, Phase Indicator Light
Ambient temperature: -5 – 65˚C
Efficiency: ≤ 95%
Dimensions: 44 x 40 x 45 cm
Weight: 40Kg
Winding: Copper wire.
