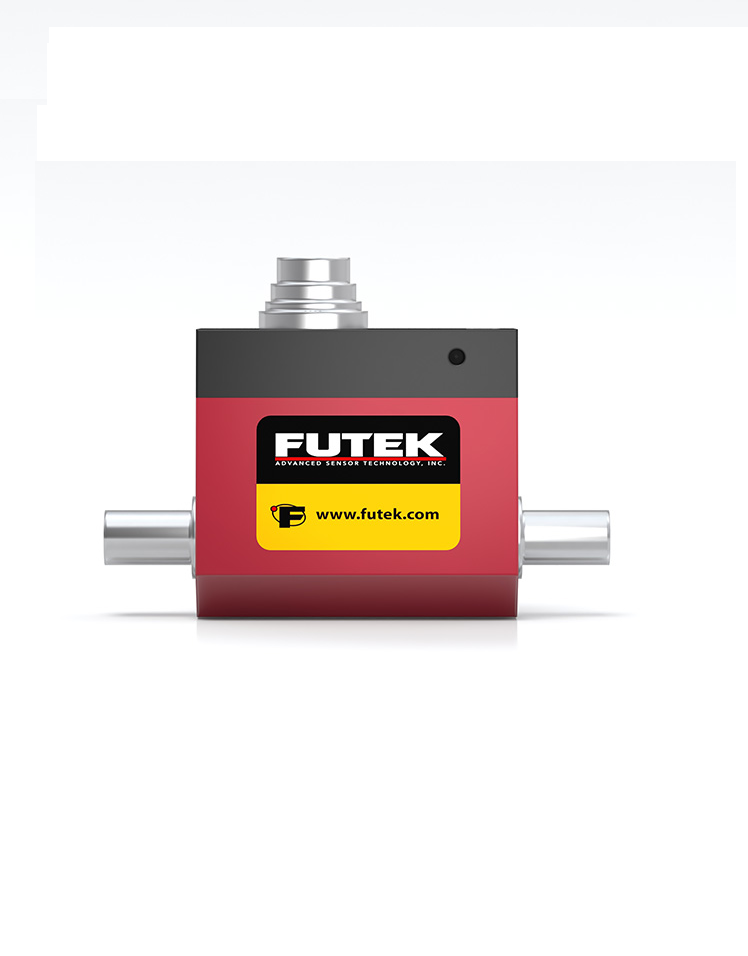

FUTEK TRS605 Non-Contact Shaft-to-Shaft Rotary Torque Sensor with Encoder
Manufacturer: FUTEK Model: TRS605 - Contact
Calibration
Calibration Excitation:
Channel: 1
TYP: 24 Vdc
Electrical
Excitation
Channel: 1
Min: 11Vdc
Max: 26 Vdc
Mechanical
Safe Overload
Channel: 1
Max: 150 % of R.O.
Performance
Capacity
Channel: 1
Max: 200 N-m
Hysteresis
Channel: 1
Min: -0.1 % of R.O.
Max: 0.1 % of R.O.
Nonlinearity
Channel: 1
Min: -0.2 % of R.O.
Max: 0.2 % of R.O.
Nonrepeatability
Channel: 1
Min: -0.2 % of R.O.
Max: 0.2 % of R.O.
Rated Output
Channel: 1
Typ: 5 Vdc
Temperature
Operating Temperature
Channel: 1
Min: -13 độ F
Max: 176 độ F
Temperature Shift Span
Channel: 1
Min: -0.01 % of Load/F
Max: 0.01 % of Load/F
Temperature Shift Zero
Channel: 1
Min: -0.01 % of R.O./F
Max: 0.01 % of R.O./F
