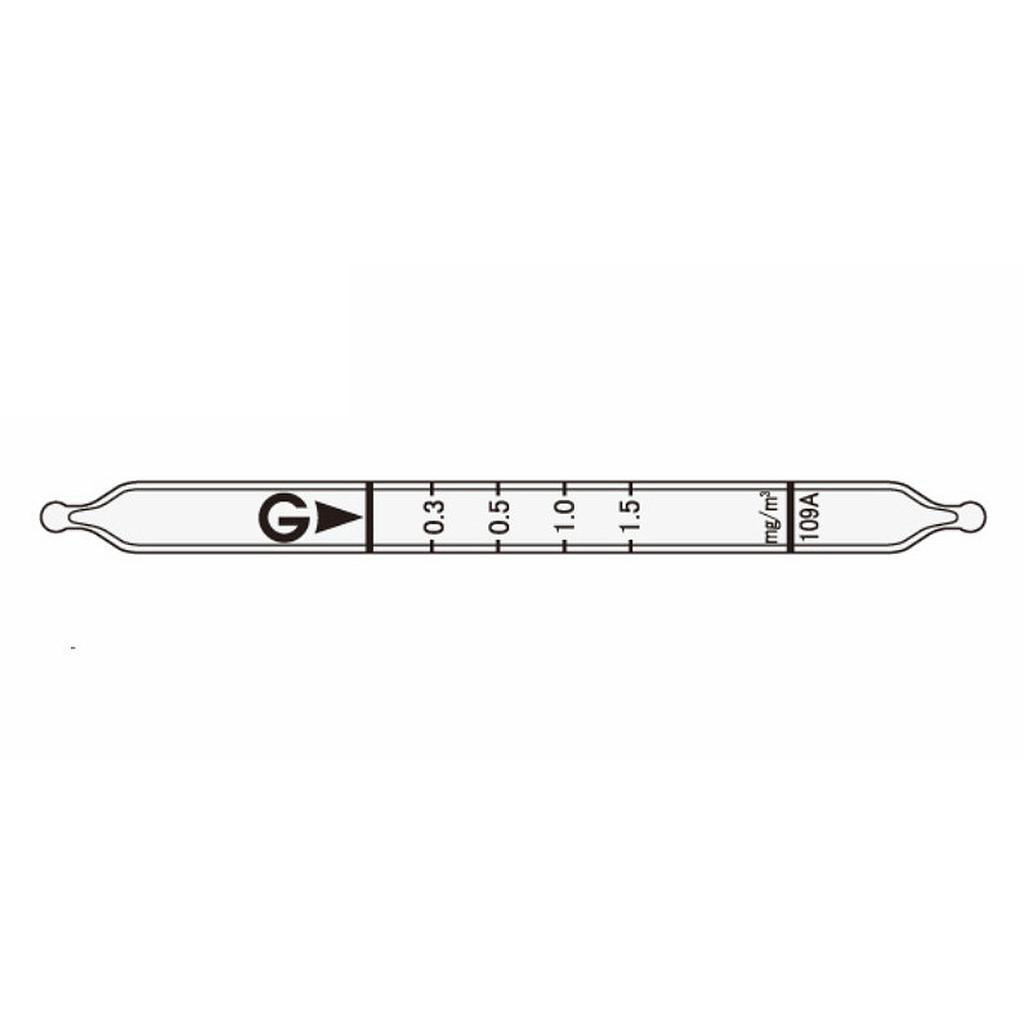

Indicator: 0.3 ~ 1.5 mg/m3
Measuring Range: 0.3 ~ 1.5 mg/m3
Sampling Rate: 1000mL/min (60000mL)
Sampling Time: 60 minute
Colour Change: White → Dark green
Reaction Principle: Oil + I2O5 + H2S2O7 → I2
Coefficient of Variation: 15% (for 0.3 to 0.5 mg/m3) , 10% (for 0.5 to 1.5 mg/m3)
Nr. of tests: 10
| Measuring Range | 0.3 to 1.5 mg/m3 |
| Sampling Rate | 1000mL/min (60000mL) |
| Correction Factor | 1 |
| Sampling Time | 60 minutes |
| Colour Change | White → Dark green |
| Reaction Principle | Oil + I2O5 + H2S2O7 → I2 |
| Coefficient of Variation | 15% (for 0.3 to 0.5 mg/m3) , 10% (for 0.5 to 1.5 mg/m3) |
| Shelf Life | 2 Years |
| Corrections for temperature | Unnecessary for 0 to 40℃ |
| Corrections for humidity | Unnecessary for R.H.0 to 90% |
| Store the tubes at cool and dark place. | |
| Calibration gas generation | Diffusion tube method |
Measurement procedure:
 |
1.Install a reducer pressure with gauge and flow metre to a cylinder, compressor or air line and adjust the flow metre the required setting. | |
| 2.Break tips off a fresh detector tube in the tube tip breaker and insert a tube into a tube holder. |
 |
|
 |
3.Attach the rubber tube holder to the flow metre outlet. Make certain the tube arrow on the tube pointing in a down direction. |
|
| 4.Turn on the cylinder or compressor and confirm the flow metre according to each Airtec tube specifications. |
 |
|
 |
5.Time the flow rate with a stopwatch. | |
| 6.As soon as sampling time has elapsed turn off the cylinder or compressor, and remove the tube from the tube holder and then read the colour change layer immediately. |
 |
