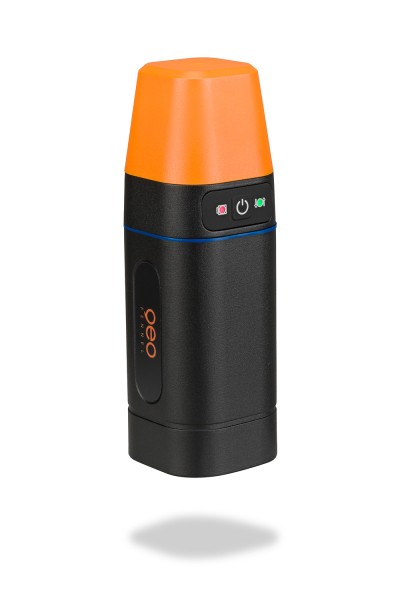

GEO-Fennel FGS Lite plus GNSS-System

Dust / water protection: IP 65

Bluetooth: BT 2.0, Windows und Android

Accuracy DGPS: 0.4 m horizontal, 0.8 m vertikal

Accuracy Stand-Alone: 1.5 m horizontal, 2.5 m vertikal

Accuracy RTK: 8.0 mm + 1 ppm horizontal, 15.0 mm + 1 ppm vertical, <5 s , >99.9 %

Charging time: 2 h

Operation temperature: -45 ℃ bis + 75 ℃

Weight: 0.409 kg

Extended size: 50 × 149 mm

QZSS: L1, L2, L5

SBAS: WAAS, EGNOS, MSAS, GAGAN

GALILEO: E1, E5a, E5b, E61

BEIDOU: B1I, B2I, B3I, B1C, B2a, B2b1

GLONASS: L1, L2, L31

GPS: L1 C/A, L1C1 , L2P, L2C, L5

Channels: 1408

Storage temperature: -55 °C bis +85 °C

Power supply: 3-18 V DC, ≤ 45 W

Operating time: 16 h
