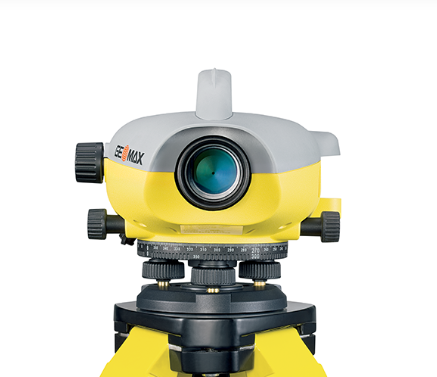

GEOMAX ZDL700 Digital Level (105m)
Manufacturer: GEOMAX Model: ZDL700 - Contact
Accuracy
Height accuracy : ± 0.7 mm/km
Distance accuracy : D < 10 m, 10 mm | D ≥ 10 m, 0.001
Systems
Maximum
Minimum
Single measurement speed: < 3 sec.
Minimum lighting condition: 20 Lux
Minimum field of view: ≥ 50 %
Display
Minimum resolution (Ht): 0.1 mm
Minimum resolution (Dist): 1 mm
Telescope
Magnification: 24 x
Compensator
Setting accuracy: ± 0.35”
Communication
Internal
Interface: RS232
Environmental conditions
Operating / Storage Temperature: -10° C ~ +50° C / -40° C ~ +70° C
Protection to dust and water: IP55
Weight
Weight including battery : < 2.5 kg
Battery
AA dry cells (4XLR6 / AA 1.5V)
1800mAh / 2300mAh 14 /16 hours continuous measurement
