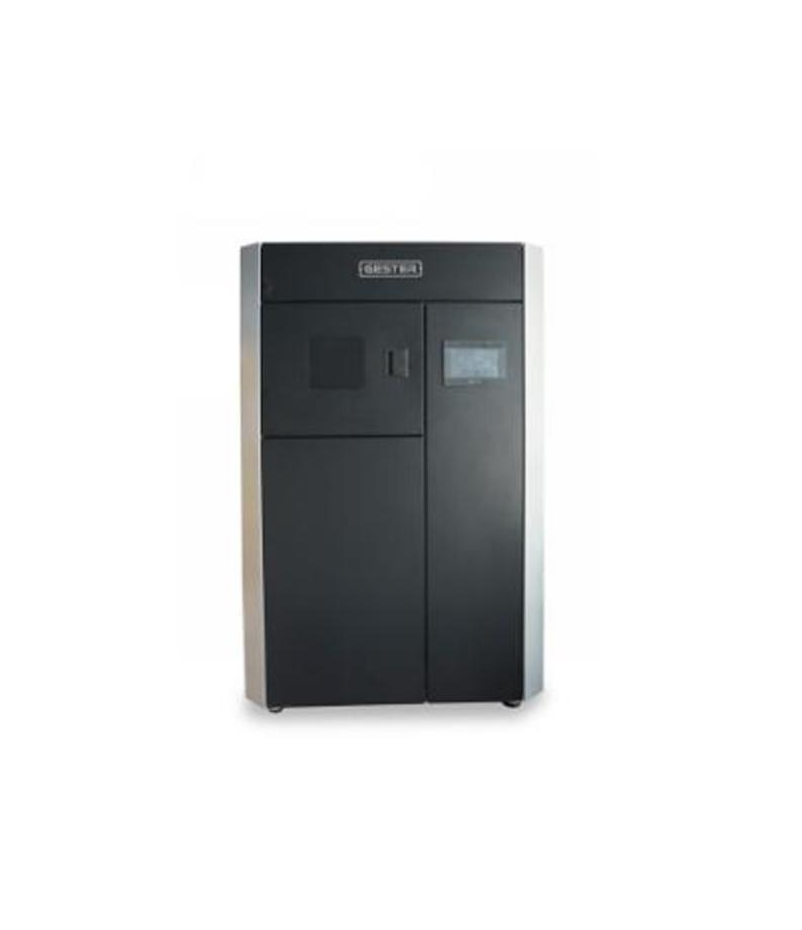

GESTER GT-D02A-2 Light Fastness Tester (25–50℃, 10–70%RH, 30–95%RH, 0.80–2.01 W/m² @420nm)

Function Mode: Offering light, rain, alternating light and dark, revolution, rotation.

The alternation light and dark is meet with AATCC TM16-4

standard. The Xenon lamp light automatically turns on and off in

accordance with a certain proportion of time ( Instead of the

previous sample holder 180 degree reversal) , and temperature

and humidity changes according to the standard.

Chamber Temperature: 25-50℃ , Resolution: 0.1℃

Chamber Humidity:

Light Cycle: 10-70%RH; Resolution: 0.1%

Dark Cycle: 30-95%RH; Resolution: 0.1%

BST: 40-85℃ Accuracy: 0.1℃

BPT (Option): 40-80℃ Accuracy: 0.1℃

Time Control Range: ≤10000h

Irradiance Control Range: 0.80-2.01W/m²@420nm

(Option: 340nm, 420nm, 300-400nm and 300-800nm)

Accuracy: ±0.02W/m²@420nm.

Digital setting, Closed-loop Automatic Compensation

Xenon Arc Lamp Rated Power: 2.5KW

Sample Holder Rotation Speed: Revolution 5r/min

Sample Holders Capacity: ISO: 145×45mm 16pcs Or AATCC: 145×70mm 8pcs

Timing of Each Sample Holder, Respectively: ≤10000h

Light Period: ≤1000h

Spray Period: ≤1000h

Power Supply: AC220V ±10% 50Hz 5.0KW .

Dimensions: 1000×600×1650mm
