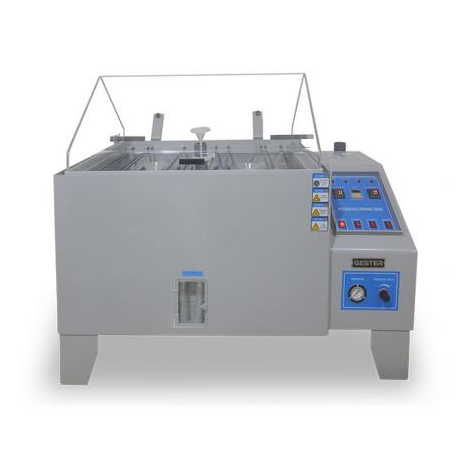

GESTER GT-F50BA-5 Neutral Salt Spray Test Chamber (1440L)

Determining the product corrosion resistance after various kinds of materials surface suffering electroplating, anodizing, painting, rust-proof oil corrosion resistance treatment.

Inside Chamber Dimension(WxDxH cm): 200x120x60

Outside Chamber Dimension(WxDxH cm): 270x150x150

Test Chamber Volume: 1440L

Brine Tank: 40L

Control Method: Touch Screen

Plastic Plate Thickness: 5mm

Temperature of Test Chamber: Brine test method 35℃±1℃

Temperature of  Pressure Barrel: Brine test method 47℃±1℃

Brine Temperature: 35℃~ 50℃

Brine Concentration: 5% sodium chloride solution concentration

Compressed Air Pressure: 1.00±0.01kgf/cm2

Spray Volume: 1.0~2.0ml/80cm2/h(gather at least 16 hours, take its average)

Relative Temperature of Test Chamber: Above 85%

PH-value: Neutral: 6.5~7.2

Spray Method: continuous spray or intermittent spray

Power Supply: AC220V1Φ30A

Temperature Range:

Laboratory temp.: 35℃- 50℃(can be arbitrarily set)

Pressure barrel temp.: 47℃- 63℃(can be arbitrarily set)

Temperature Rising Speed:

Laboratory: Room temperature →35℃ about 35 minutes

Pressure barrel: Room temperature →47℃  about 15 minutes

Temp. accuracy: ±1℃
