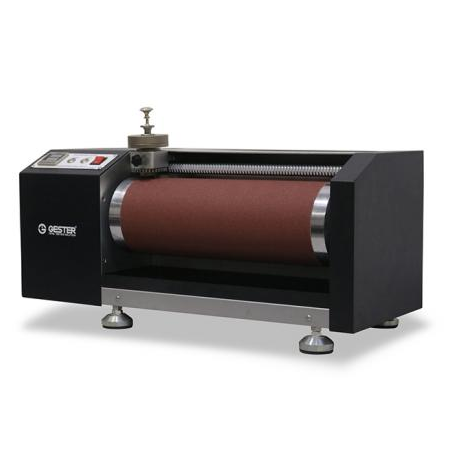

GESTER GT-KB03 Rotary Drum DIN Abrasion Tester

Used to determine wear performance test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.

Diameter of wear wheel: 150mm

Specimen dimension: ø16.2 mm x thickness 6-10 mm

Specimen moving speed: 4.2 mm/r

Weights: Holder 2.5N, can be used arbitrarily with optional accessory 2.5N, 5N (each for one)

Wear wheel speed: 40±1rpm

Inclination angle: 3°, Test piece support shaft of test piece becomes vertical angle with roller.

Roller length: 460mm

Wear stroke: 40m

Power supply: 1∮AC 220V 50/60HZ 3A

Dimensions (L x W x H): 700 x 300 x 300 mm

Weight: 55kg

Standard accessories:

• 2.5N weights

• 5N weights

• P60# standard abrasive paper

• Standard cutting die

• Metal blob(Grinding head)

• Power line
