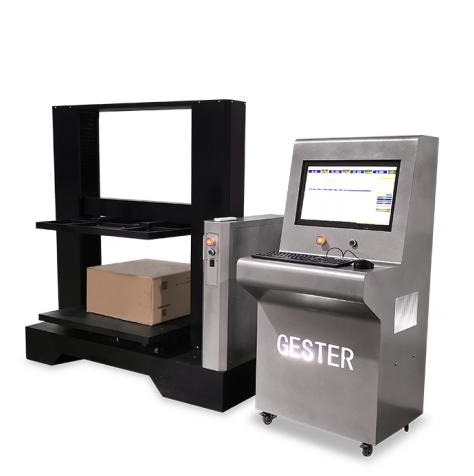

GESTER GT-N02B-1 Box Compression Tester

Plate Size(mm): 500 x 500

Max Stroke(mm): 500

Measuring Range: 0-10KN, 20KN, 30KN, 50KN. 70KN, 100KN ( Option)

Indication Error: ±0.5%

Test Speed: 0.001-500mm/min, can set by computer, with up & down fast adjustment button of grips

Force Unit Switch: Kgf, N, Ibf, g, ton, Mpa

Display: Computer display mode

Stop Mode: Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function

Machine Drive:Servo motor drive, synchronous wheel and precision ball screw drive

Power Supply: AC 220V 5A 50HZ
