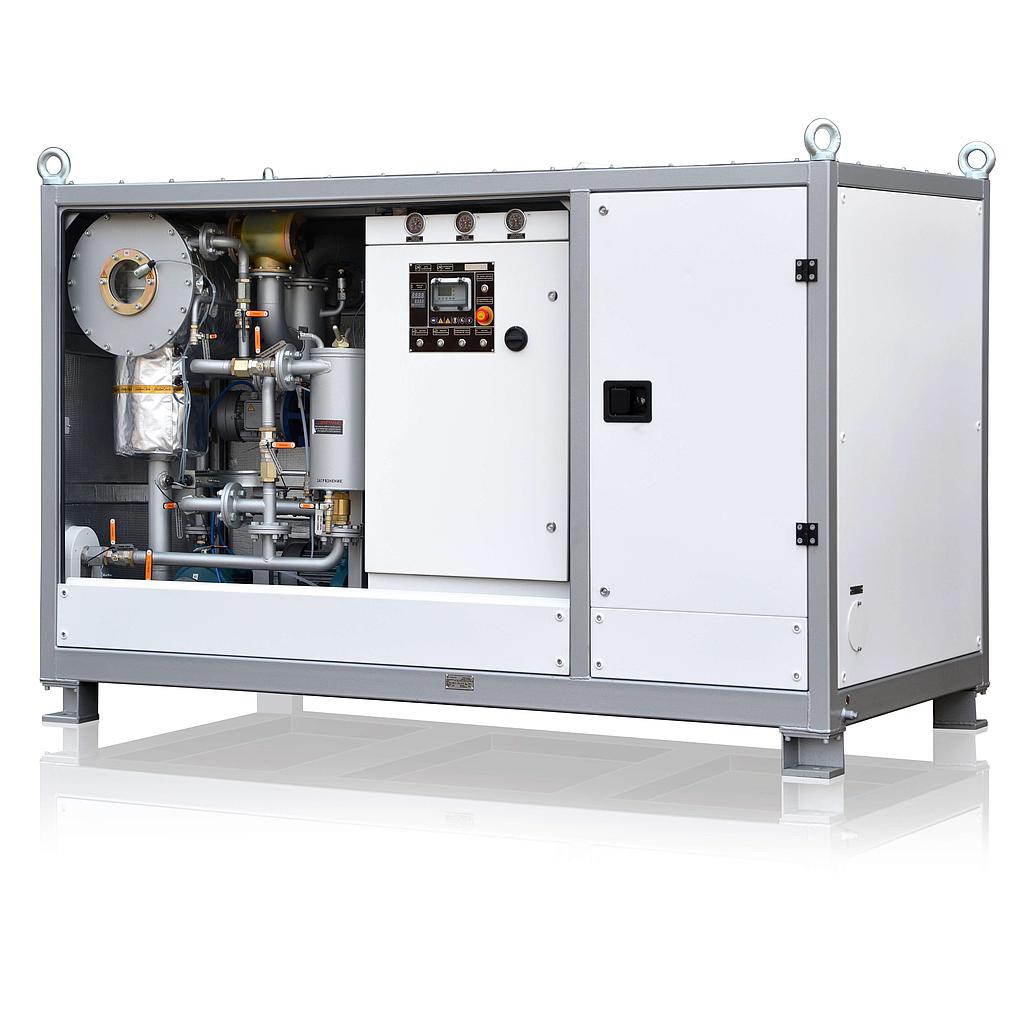

GlobeCore CMM-6/7 Portable oil degassing unit (2-6 m3/hour / gals; 2-7 m3/hour / gals)

Capacity, m3/hour / gals. per hour:

• degassing, drying and filtration mode: 2-6

• heating and filtration mode: 2-7

*Processed oil parameters:

• gas content, % vol, max: 0.1

• water content, ppm, max: 10

• ISO 4406 purity class: 16/14/12

Max oil output temperature in heating mode, ºС: 90

Outlet pressure, Mpa: 0.2

Max heater power, kW: 100

Max power consumption, kW: 115

Residual vacuum chamber pressure for seal test, Pa, max: 26.7

Max air leak in 1 hour seal test, Pa: 267

Power supply:

• voltage, V: 400

• frequency, Hz: 50/60

Dimensions, mm (w/o trailer / with trailer):

– length: 2600/3750

– width: 1250/1840

– height: 1500/1940

Weight, kg (w/o trailer / with trailer): 1100/1500

* Note –  Initial oil quality parameters:

• gas content: below 10.5% vol

• water content: below 0.005% (50 g/t)

• temperature: above 0 ºС.
