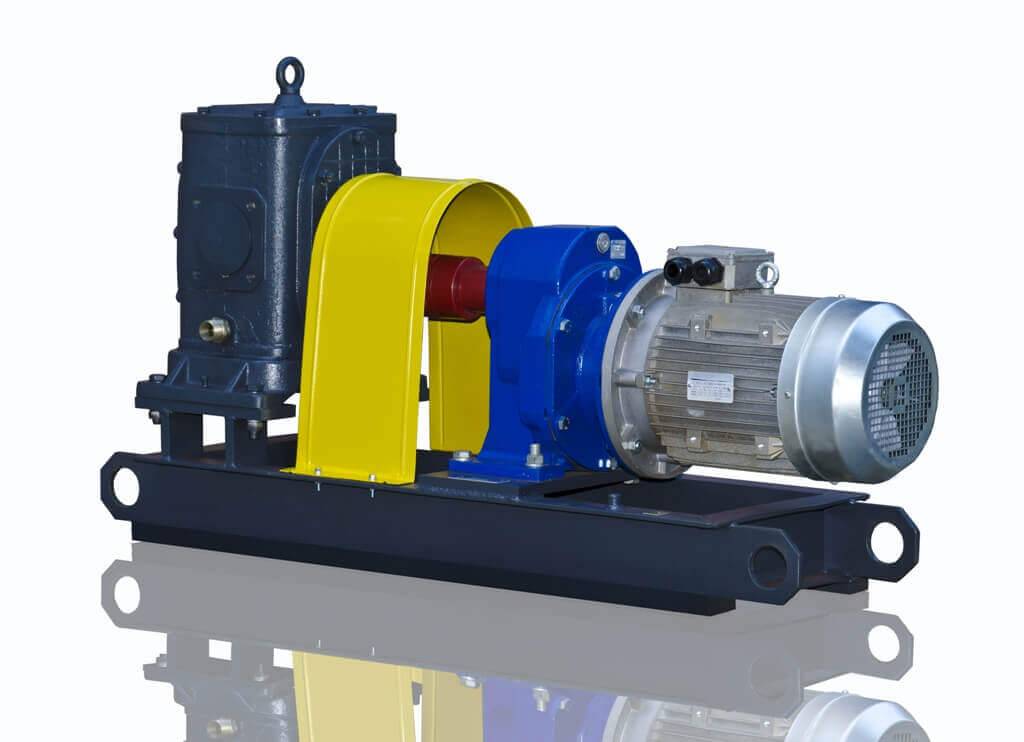

Pump type: Gear pump
Nominal capacity, m3/hour: 28
Nominal shaft RPM: 389
Nominal drive power, kW: 7.5
Power supply voltage, V: 380/220
Nominal mean suction diameter, mm: 80
Nominal mean heat carrier input diameter, mm: 25
Max allowable heat carrier pressure, Mpa: 0.78
Max heat carrier temperature, °C: 180
Operating pressure at nominal feed, Mpa: 0.59
Minimum suction head, m: 1
Dimensions (L/W/H), mm: 1270/430/745
Max weight, kg: 300
