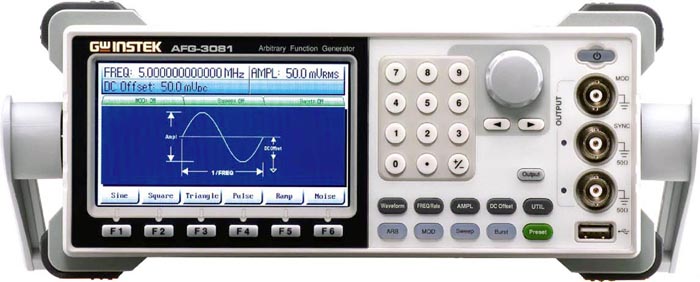

Dimensions: 265 (W) x 107 (H) x 374 (D) mm
Weight: 4 kg
Warranty: 12 months
Waveforms: Sine, Square, Ramp, Pulse, Noise, DC, Sin(x)/x, Exponential Rise, Exponential Fall, Negative Ramp
- Arbitrary Waveform
Sample Rate:200 MSa/s
Waveform Length: 4M points
Amplitude Resolution: 16 bit
- Frequency Characteristics
Sine, Square: 50MHz
Ramp:1MHz
Resolution: 1uHz
Accuracy Stability: ±1 ppm
-Output Characteristics
Amplitude: 10mVpp ~ 10Vpp (50Ω), ± 1%
Flatness
± 1% (0.1dB) <10 mhz="" p="">
± 2% (0.2 dB) 10 MHz to 50 MHz
- Offset: ±5 Vpk ac +dc (50Ω), 1%
- Output Impedance: 50Ω typical (fixed) > 300kΩ (output disabled)
- Sine wave Characteristics
Harmonic Distortion
–60 dBc DC～1 MHz, Ampl＜3 Vpp
- Square wave Characteristics
Rise/Fall Time: < 8ns
Overshoot: < 5%
Asymmetry: 1% of period+1 ns
Variable Duty Cycle
20.0% to 80.0% ≦ 25 MHz
- Ramp Characteristics
Linearity: ＜ 0.1% of peak output
Variable Symmetry: 0% to 100%(0.1% Resolution)
- Pulse Characteristics
Period: 20ns~2000s
Pulse Width: 8ns~1999.9s
Overshoot: <5%
Jitter: 100 ppm +50 ps
- AM Modulation
Carrier Waveforms: Sine, Square, Triangle, Ramp, Pulse, Arb
Modulating Waveforms: Sine, Square, Triangle, Up/Dn Ramp
Modulating Frequency: 2 mHz to 20 kHz
Depth: 0% to 120.0%
Source: Internal / External
- FM Modulation
Carrier Waveforms: Sine, Square, Triangle, Ramp
Modulating Waveforms: Sine, Square, Triangle, Up/Dn Ramp
Modulating Frequency: 2 mHz to 20 kHz
Peak Deviation: DC to 50 MHz; DC to 50 MHz
Source: Internal / External
- PWM
Carrier Waveforms: Square
Modulating Waveforms: Sine, Square, Triangle, Up/Dn Ramp
Modulating Frequency: 2 mHz to 20 kHz
Deviation: 0% ～ 100.0% of pulse width
Source: Internal / External
- FSK
Carrier Waveforms: Sine, Square, Triangle, Ramp, Pulse
Modulating Waveforms: 50% duty cycle square
Internal Rate: 2 mHz to 100 kHz
Frequency Range: DC to 50 MHz
Source: Internal / External
- SWEEP
Waveforms: Sine, Square, Triangle, Arb
Type: Linear or Logarithmic
Direction: Up or Down
Start F / Stop FREQ: 100 uHz to 50 MHz
Sweep Time: 1 ms to 500 s
Trigger: Single, External, Internal
Marker: Falling edge of Mark signal
(Programmable frequency)
Source: Internal / External
- BURST
Waveforms: Sine, Square, Triangle, Ramp
Frequency: 1 uHz to 50 MHz(4)
Burst Count: 1 to 1000000 cycles or Infinite
Start / Stop Phase: -360.0∘to +360.0∘
Internal Period: 1 ms to 500 s
Gate Source: External Trigger
Trigger Source: Single, External or Internal Rate
Trigger Delay : N-Cycle, Infinite: 0s to 85 s
- External Modulation Input
Type: for AM, FM, Sweep, PWM
Voltage Range: ± 5V full scale
Input Impedance: 10kΩ
Frequency: DC to 20 kHz
- External Trigger Input
Type: for FSK, Burst, Sweep
Input Level: TTL Compatible
Slope: Rising or falling(selectable)
Pulse Width: > 100 ns
Input Impedance: 10kΩ,DC coupled
Latency: Sweep < 10 us (typical); Burst < 100 ns (typical)
Jitter: Sweep 2.5 us; Burst 1 ns; except pulse,300 ps
- Modulation Output
Type: for AM, FM, Sweep, PWM
Amplitude: Range ≧1Vpp; Impedance > 10kΩ typical (fixed)
- Trigger Output
Type: for Burst, Sweep
Level: TTL Compatible into 50Ω
Pulse Width: > 450 ns
Maximum Rate: 1 MHz
Fan-out: ≧4 TTL load
Impedance: 50Ω typical
- Marker Output
Type: for ARB, Sweep
Level: TTL Compatible into 50Ω
Fan-out: ≧4 TTL load
Impedance: 50Ω typical
Store/Recall: 10 Groups of Setting Memories
Interface: GPIB, RS232, USB
Display: 4.3 inch TFT LCD 480 × 3 (RGB) × 272
- General Specifications
Power Source: AC100～240V , 50～60Hz
Power Consumption: 25 VA
Operating Environment
Temperature to satisfy the specification : 18 ~ 28∘C
Operating temperature : 0 ~ 40∘C
Relative Humidity: ≤ 80%, 0 ~ 40°C
Accessories
GTL-110× 1, Instruction Manual×1, Power cord×1
