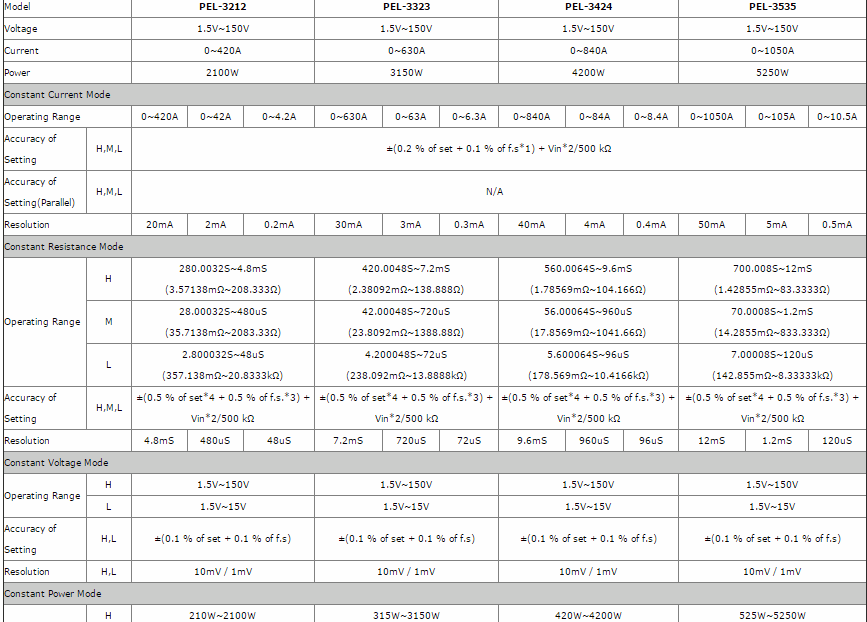

Voltage: 1.5V~150V
Current 0~1050A
Power 5250W
Operating Range 0~1050A ; 0~105A ; 0~10.5A
Accuracy of Setting: ±(0.2 % of set + 0.1 % of f.s*1) + Vin*2/500 kΩ
Constant Resistance Mode
Operating Range: 700.008S~12mS (1.42855mΩ~83.3333Ω)
70.0008S~1.2mS (14.2855mΩ~833.333Ω)
7.00008S~120uS (142.855mΩ~8.33333kΩ)
Accuracy of Setting ±(0.5 % of set*4 + 0.5 % of f.s.*3) + Vin*2/500 kΩ
Resolution: 12mS; 1.2mS; 120uS
Constant Voltage Mode:
Operating Range: 1.5V~150V/ 1.5V~15V
Accuracy of Setting: ±(0.1 % of set + 0.1 % of f.s)
Resolution 10mV / 1mV
Constant Power Mode:
Operating Range: 525W~5250W/ 52.5W~525W/5.25W~52.5W
Accuracy of Setting: ±(0.6 % of set + 1.4 % of f.s*3)
Resolution 500mW; 50mW ; 5mW
Voltmeter Accuracy ±(0.1 % of rdg + 0.1 % of f.s)
Ammeter Accuracy ±(0.2 % of rdg + 0.3 % of f.s)
Power Source AC100V ~ 230V±10% ; 50Hz / 60Hz ± 2Hz
Interface USB/RS232C/Analog Control (Standard) ; GPIB(Option)
Weight Approx. 127.5 kg
DIMENSIONS & WEIGHT 598(W)x877(H)x706(D)mm
