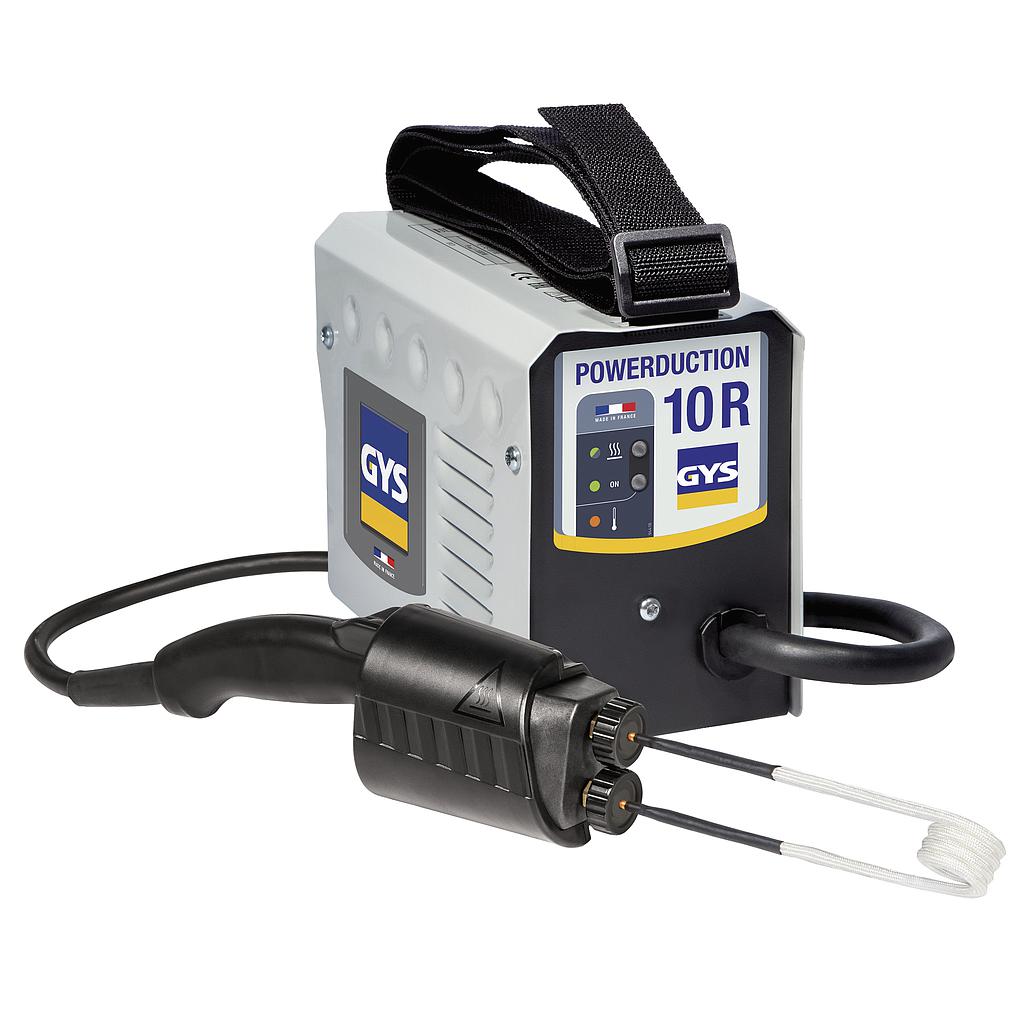

GYS POWERDUCTION 10R Induction Heating Machine (1ph; 230V; 1200W; 45-100kHz)

The Powerduction 10R is designed to heat, unlock to enable removal of mechanical parts such as worn nuts and bolts in seconds. It is especially recommended in the automotive, agricultural, maintenance and metal construction.

AN ERGONOMIC MULTI-APPLICATION TOOL

• Instant heat without flame applied to a specific area, it can be used close to cables, pipes, or other heat sensitive objects avoiding the need to disassemble / remove them.

• Light weight: just 3.5 kg - 1.3 kg for the inductor alone.

• Ergonomic: shoulder strap provided

• Easy to use: uses a standard 230V single phase supply.

• Quick start: select and install the inductor, connect and go.

• 1200W output power with high duty cycle:

A WIDE RANGE OF INDUCTORS

• The range of 5 inductors allows to vary the heating applications: for a;ll types of shapes and access contraints.

• Changing the inductor is very easy by virtue of the simple wheel clamping system.

Specifications:

Power supply: 230 V, 1 ph, 50/60 Hz

Fuse: 16 A

Power: 1200 W

Heating frequency: 45-100 kHz

Coolant: air

Inductor Cable: 1 m

Duty Cycle (environment temp. 35°C): 1200 W = 2 min

Dimensions (L x w x h): 23 x 14 x 10 cm

Weight: 3 kg

Protection level: IP21

Standard: IEC 60335-1

Included accessories: Box + Spiral Ø18 mm, Ø24 mm, Ø30 mm + Flexible braided wire 80cm+ Straight rigid wire 80cm
