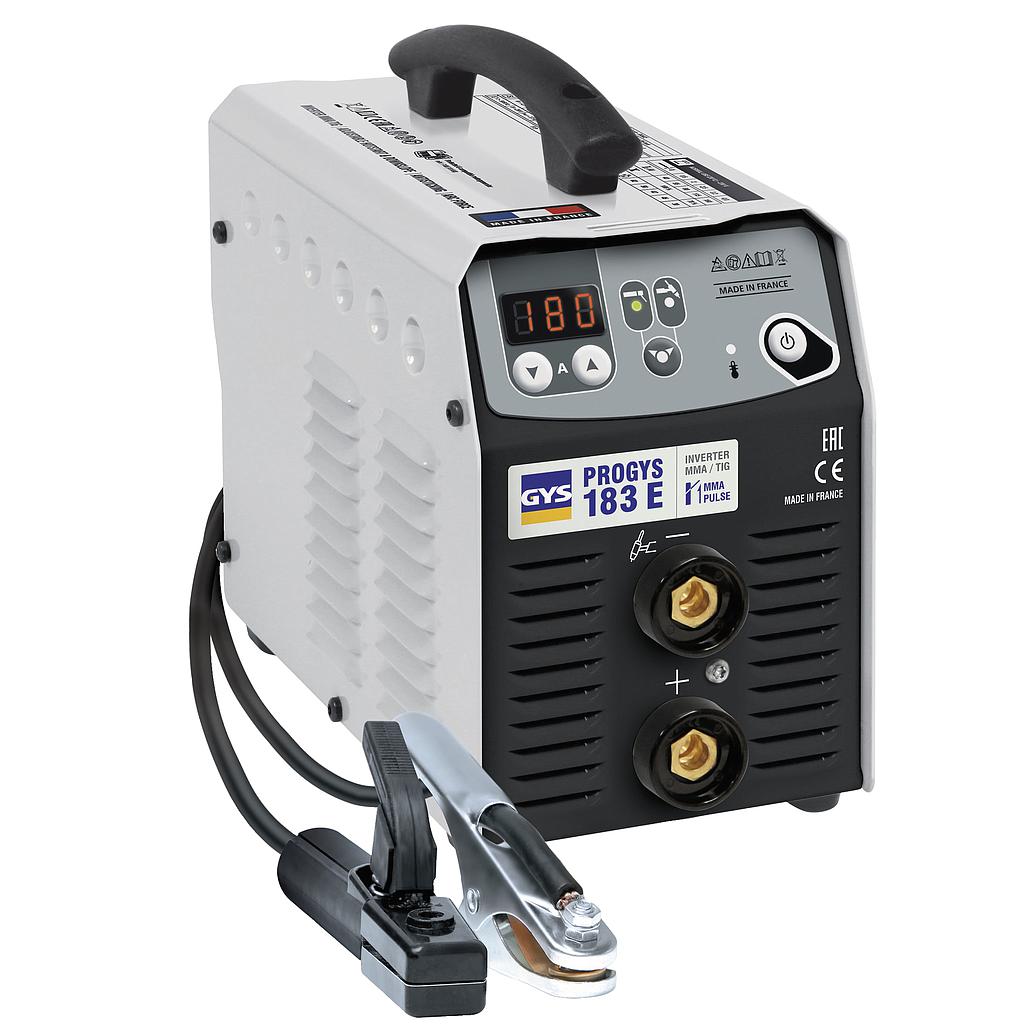

Equipped with the latest electronic technology and designed to be robust and durable, the PROGYS 183 E will deliver professional welding results on steel, cast iron and stainless steel up to 10 mm. It is designed to perform 3 types of welding process MMA, Pulse MMA and LIFT TIG. The very soft fusion point ensures a perfect finish.
- 3 WELDING MODES
■ MMA : Weld with great facility most types of coated electrodes : steel (rutile and basic), stainless steel and cast-iron (up to Ø 4.0 mm).
■ MMA PULSE : For ascending vertical welding.
■ TIG Lift : For precise work on thin sheets.
- WELDING FEATURES:
+ Hot Start (adjustable) : Adjustable higher amperage when the electrode first comes into contact with the metal. Prevents the electrode from sticking when the metal or the electrode are cold.
+ Arc Force : Increases the amperage when required to keep the arc stable.
+ Antisticking : Prevents the electrode from sticking when in contact with the metal.
+ MMA Pulse (adjustable) : Ideal for ascending vertical welding. Optional frequency adjustment.
+ TIG Lift (adjustable) :
Easier start to ensure perfect quality welding bead.
A simple movement of the wrist starts the automatic downslope to ensure a smooth and clean welding finish.
Specifications:
Power supply: 230 V, 1 ph, 50/60 Hz
Fuse: 16 A
Normal current output (MMA): 10-180 A
Normal current output (TIG): 10-180 A
Maximum welding current: 180 A
No-load voltage: 72.9 V
Duty cycle (environment temperature at 40°C):
- MMA:
180 A/27.2 V @ 18%
110 A/24.4 V @ 60%
85 A/23.4 V @ 100%
- TIG:
180 A/17.2 V @ 25%
135 A/15.4 V @ 60%
100 A/14 V @ 100%
Dimensions (L x w x h): 14x19x38 cm
Weight: 5 kg
Protection class: IP21
Standard: IEC 60974-1/10 A
Included accessories:Earth cable (1.6 m / ø 16 mm²) + Electrode holder (2 m / ø 16 mm²) + plastic case
