Haglof L5 Laser precision laser for heights, distances and angles with speed and accuracy

Name: Haglof L5 Laser precision laser for heights, distances and angles with speed and accuracy
Brand: HAGLOF

ManufacturerHAGLOF(View more products from this manufacturer)

ModelL5

OriginSweden

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Size: 93x63x72mm /3.7x2.5x2.8”.
Weight: 243 g/8.6oz.
Battery and consumption:
Rechargeable Li-Ion 3.7V, built-in, approx. 9000 measurings. Charging time max 3.5h.
USB mini B interface wall charger 110/220AC/5VDC; car charger adapter 12VDC. Cable
Usb mini B Male/Usb Type A Male, 0.5m. Consumption max 0.9W.
Communication: IR, Bluetooth® class 2, Spp (serial profile), pincode 12345.
Temperature: -20° to +45° C/ -4°F-113°F.
Height: 0-999 m/ft. Resolution height: 0.1 m/ft.
Angle: -55° - 85°. Unit: Degrees 360⁰, Grads 400⁰ and %. Resolution: 0.1⁰. Accuracy: 0.1⁰.
Laser: Distance: 46cm/1.5ft - 700m/2000ft depending on target. Accuracy: 4cm/0.1ft.
Resolution: 0.1m/ft.
Classification: MIL-STD-810E. Housing frame material glass filled poly carbonate, IP67, NEMA6, Laser
class 1, 7mm (FDA, CFR21) Class 1m (IEC 60825-1:2001).
Sight: LED crosshairs 1 x magnification.
Display: Graphic LCD 100x60pixles.
Dataformat: Nmea or Ascii.
Memory: 2000 dataset, non-volatile.
Other information,
details, accessories etc.
Camera-type monopod 15-103-1531. Aluminum transport/storing case. See user
manual for more details.

Datasheet

Laser - L 5

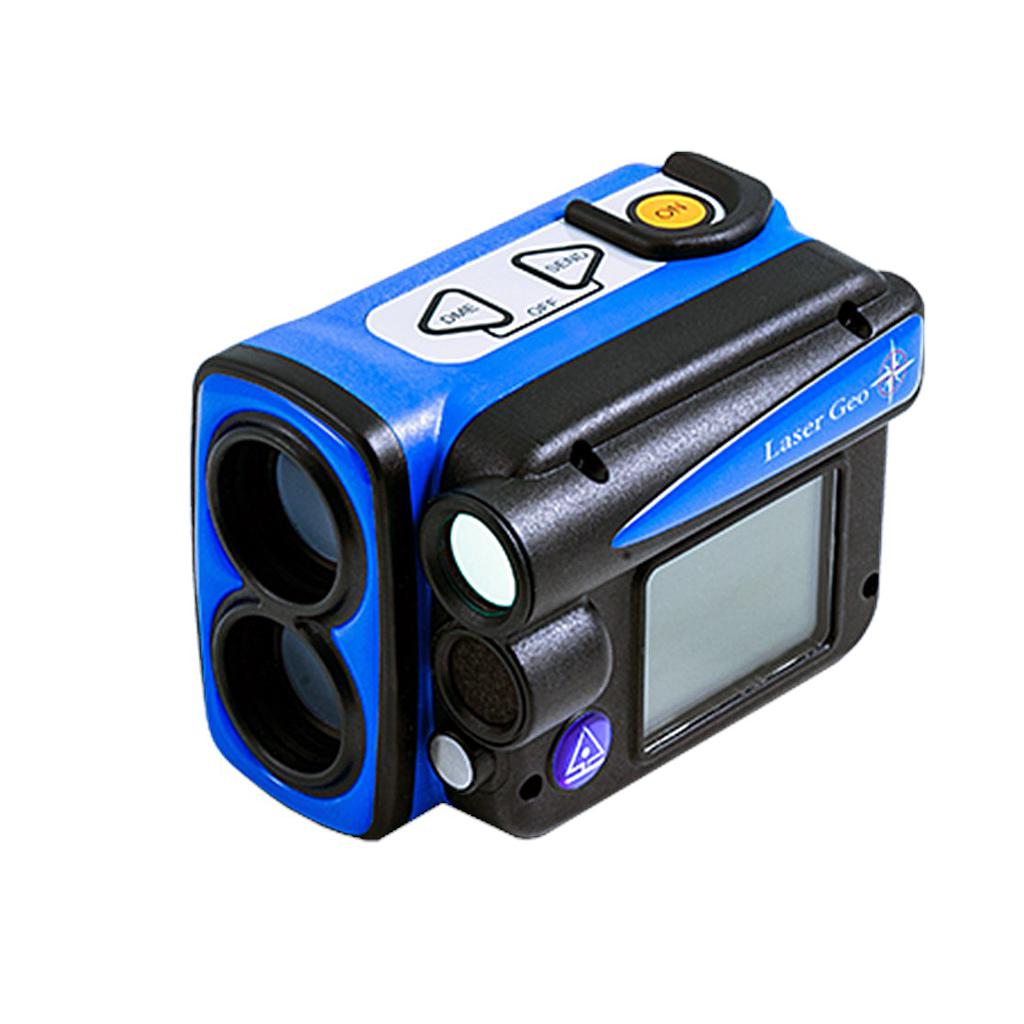

The L5 offers extended distance measurement range from 46 cm to 700 m with great accuracy.
The instrument has a rugged casing in bright blue color.
With quality optics and filter function, internal storing and data processing capacity, the L5 offers great functionality.
An excellent instrument choice for control work along power lines and utility industry with
Built-in functions for tree limit/hazard trees and delta height.
Bluetooth® and IR communication and built-in Li-Ion battery with long-lasting capacity.
L5 Custom models - with special functions for compliance in timber industry, on logyards and in mining industry

Distance

Heights

Angle

Laser technology is ideal to measure long distances, up to 700 meters/yards!Image shows instrument mounted on camera-type staff (accessory).

Different height measurement methods can be selected depending on the environment or needs.

One point height
Three point
Two point with laser
Two point with reference point
Two point with fixed distance

Measure inclination in the terrain. The L5 instrument presents the angle in degrees, grads and percentage. The camera-type monopod with foot-bracket is an accessory that can be used with the Postex, the VL5 and the L5 when a steadier aim is required.

Height measuring methods

One point height	Two point with laser
Three point	Two point with reference point

Power line measuring work

The L5 Laser is an excellent choice for control work in utility industry and along roads and power lines. Line sags, borderline trees and tree limits, heights, angles and distances are measured with high accuracy and speed. The L5 instrument is completely field adapted, rugged, and built tough for everyday use in all types of surroundings.

Hazard Trees Function

Use the L5 to measure and identify potential hazard trees along power lines, building sites, houses, roads and railways.

Delta Height Function

Use the incorporated Delta Height Function to measure line sag.

Laser Filter

A laser filter allows for flexible measuring, where you can select to measure the closest object, the farthest object or the object with strongest reflection.

Internal storing and data processing capacity

With storing capacity of 2000 datasets, the L5 Laser works great in plot surveys to calculate average height in a stand.

Communication

IR or Bluetooth can be used to transfer values to the MD II, the DP II or Digitech Professional computer calipers or other handheld units with dataformat NMEA or ASCII formate.
