HAGLOF Vertex IV instrument system for tree heights in the forest

Name: HAGLOF Vertex IV instrument system for tree heights in the forest
Brand: HAGLOF

ManufacturerHAGLOF(View more products from this manufacturer)

ModelVertex IV

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Size: 80x50x30 mm/3.2x2x1.2”.
Weight: 160g/5.6 oz (incl. battery).
Battery: 1 x 1,5 AA alkaline,
Current 20mA with Bluetooth 150mA.
Temperature: Min -15° Max 45° C / Min 5° Max 113° F.
Wireless interface: Bluetooth 1x or IR.
Signal: Built-in loudspeaker.
Ultra sonic frequency: 25 kHz.
Height: Min 0 Max 999 m/Yds.
Resolution: 0.1 m/ 0.1 ft.
Angles: -55˚ to 85˚/-60˚ to 94˚ Resolution: 0.1˚.
Distance: 30m/98ft or better. With 360° adapter 20m/60ft or better. Resolution: 0.01 m/ 0.1 ft. Accuracy: 1% or better.
BAF factors: 0.5, 1 to 9 (m2/ha) or 5, 10, 15..to 50 (ft2/acre).
TRANSPONDER T3
Size: Diameter 70mm/2,8”.
Weight: 85 g/5oz (Incl. battery).
Battery: 1.5V AA alkaline.
Consumption: max 9mW.

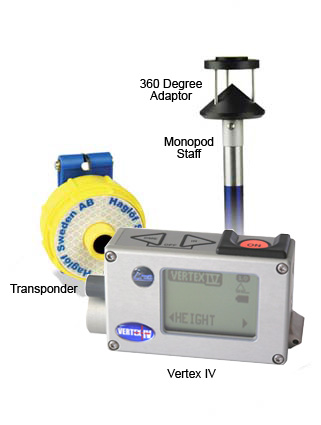

Includes: 360˚ package/set incl. Vertex IV instrument, transponder T3, plot staf and adapter

Datasheet

Vertex IV

The Vertex IV ultrasound instrument system is a true "work horse" and will give accurate and reliable measurement results in most forest terrains and conditions. It is also our best selling instrument and professional foresters preference for accurate height, distance and horizontal distance measuring.

Ultrasound distance measuring - great accuracy and proven reliability in the forest
Works in dense vegetation
Audible beep signal for measuring results
Low battery consumption
Reference users worldwide
BAF function
Bluetooth® and IR transmitter

The Vertex IV is delivered with a lanyard and in an aluminum safety and transport case.

Distance

With the well proven ultrasound measurement method and a high-visibility cross hair sight, the Vertex IV offers accurate distance readings also in thick undergrowth.

The ultrasound method works excellent for forestry measuring/sample plot surveys, for distances up to approx. 30m/98ft, in dense forests and where there are difficulties to target.

Heights

Fast and accurate two-point measurement with the Vertex IV system.

Fasten the T3 transponder to the tree at any height,
walk a distance of your choice and measure as many heights on each object as you wish,
with the four last measured heights shown in the display

Aim at the transponder, press the button and read the distance to the object.
Aim to the height you want to measure, press the button and read the height on the Vertex instrument display.

Angle

Measure slope in the terrain and have it presented to you in degrees, grads and percentage.

Plot radius

In sample plot inventory work it is important to use the correct radius measurement.The ultrasound method is very suitable for this application.

BAF - Basal area factors

Working with factor gauge or prisms can be difficult when some trees cover others in the forest. Poor sighting can prevent a correct diameter measuring.

With the Vertex IV built in BAF function, the minimum tree diameter for trees to be included in the plot can be featured.
