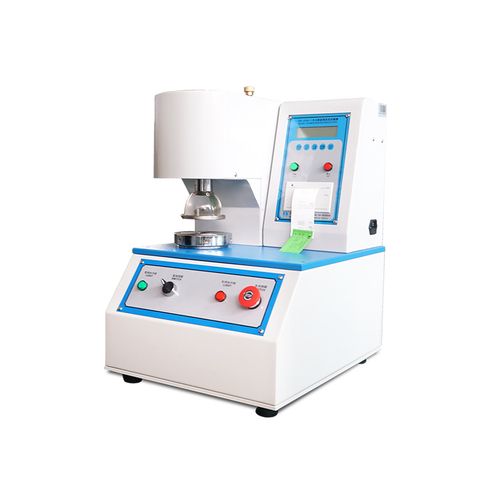

The parameters:
Capacity (Optional): High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Unit: Kpa, psi, kg/cm^2
Accuracy: ± 0.5%
Pressure Range: 250~5600kpa
Speed of Compression: High Pressure 170± 10ml/min
Specimen Clamping Force: >690kpa
Oil: 100% silicon oil
Sensing method: Pressure Transmitter
Indicating Method: Digital
Display: LCD
Material of the Ring: Stainless Steel SUS304
Opening in Upper Clamp: 31.5 ± 0.05 mm Diameter
Opening in Lower Clamp: 31.5 ± 0.05 mm Diameter
Motor: Anti-vibration Motor 1/8 HP
Operation Method: Automatic
Dimension (L×W×H): 445×425×525 mm
Weight: Approx. 70 kg
Power: 1-phase, AC220± 10%, 50 Hz
Optional Configuration: Printer, Air Pump
Advantage:
1. LCD Display
2. print max. min. average value,
3. coeficient variation, burst index
