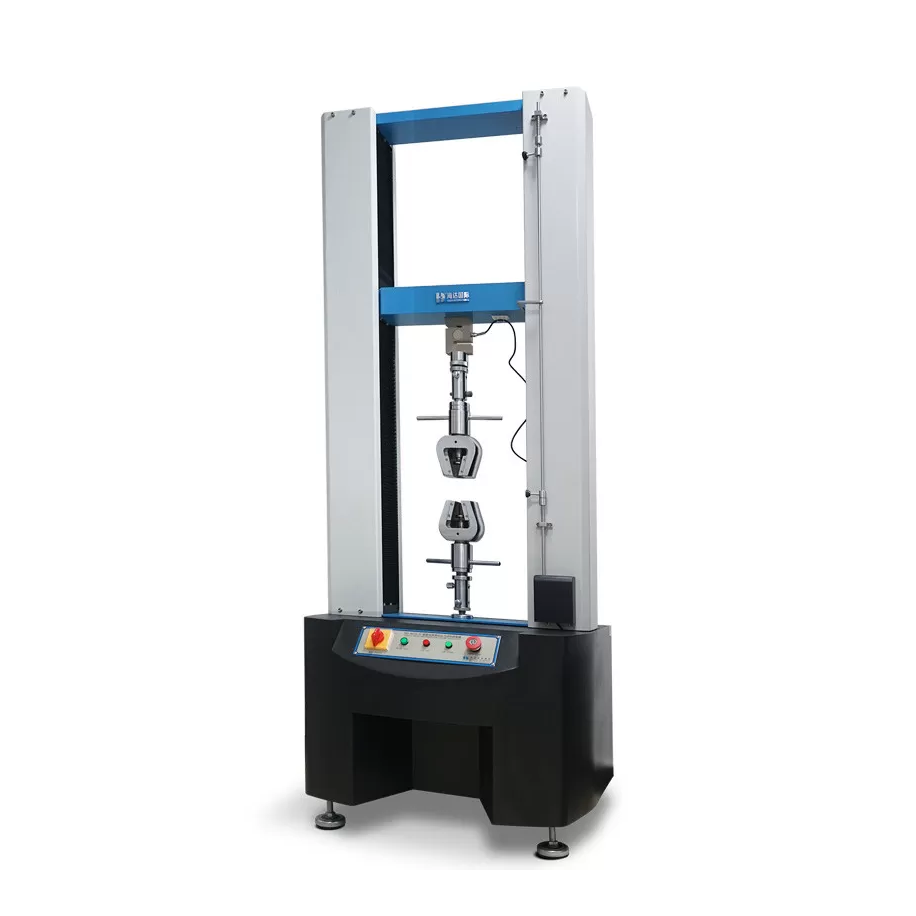

HAIDA HD-B615S Tensile Strength Testing Machine With Panasonic Servo Motor (100KN)
Manufacturer: HAIDA Model: HD-B615S Guarantee: 12 Month - Contact
Max. Force: 10T (100KN)
Load cell: Germany brand load cell for high accuracy
Control system: PC with windows 7 system
Motor: Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading: kgf, Ibf, N, KN, T etc
Stroke: 1100mm including fixture
Load cell Resolution: 1/250,000
Load Precision: within ±0.5%
Test speed: 0.01~300mm/min (adjustable)
Software: TM 2101
Curves display: Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display: Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features:
E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
