Power consumption:
220V 100W (50/60Hz)
Temperature range: 350 to 500ºC
Temperature stability: ±5ºC at idle temperature
・ Station
Output voltage: AC 29V
Vacuum generator: Vacuum pump, double cylinder type
Vacuum pressure: 80kPa (600mmHg)
Suction flow: 15L/min.
Dimensions: 166(W)×137(H)×264(D)mm
Weight: 5.7kg

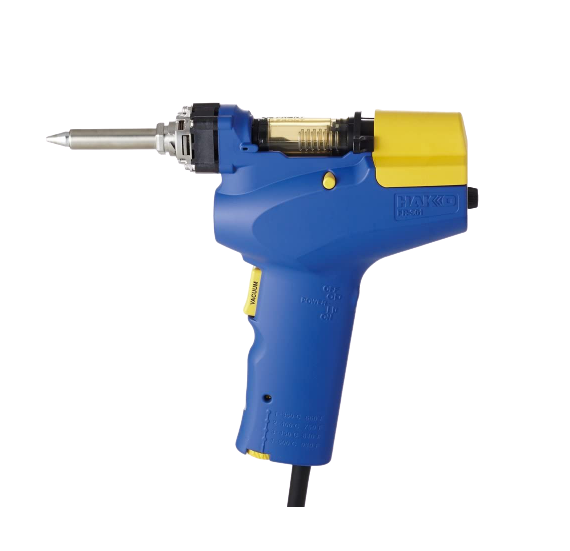

・Desoldering Tool
Power consumption: 300W (29V)
Heating element: Composite heater
Standard nozzle: Φ1.0mm type (No.N60-02)
Cord length: 1.2m
Total length: 183mm (with Φ1.0mm nozzle)
Weight: 270g (with Φ1.0mm nozzle)
Packing list: Unit, Pre-filter, Ceramic paper filter (L; 2pcs), Nozzle wrench, Iron holder (simple type), Cleaning pin for heating core, Cleaning pin for Φ1 mm nozzle, Instruction manual
User can choose power based on your need:
100V 98W (50/60Hz)
110V 122W (50/60Hz)
120V 140W (50/60Hz)
220V 100W (50/60Hz)
230V 110W (50/60Hz)
240V 120W (50/60Hz)
