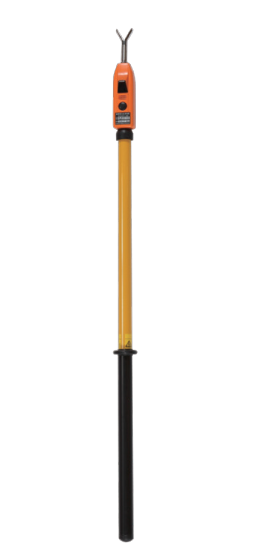

HASEGAWA HST-30 Medium Voltage & High Voltage Detector (AC3kV~34.5kV)
Manufacturer: HASEGAWA Model: HST-30 Origin: Japan Guarantee: 12 Month - Request a Quotation
Price (exclude Commercial Tax) 1,903,506 Kyat Price (include Commercial Tax) 1,998,681 Kyat
■ Specifications
Working voltage range: AC3kV~34.5kV
Operation starting voltage (Voltage to ground)
Bare wire: 500V±20%
φ5mm-OC wire:3 kV or less
Frequency: 50/60Hz
Dielectric strength: Contact tip ‒ Grip 70 kVAC, 1 min
Leakage current: 100 μA or less at dielectric strength test/1 position
Battery: LR44(1.5V) × 2 pcs
Battery life: About 4 hr. under continuously operating state
Operating temperature range: -10℃~+50℃
Weight: About 340 g
■ Accessory: Bag for housing
■ Features
• FRP is used for the insulating stick. It is lightweight and outstanding in operability.
• Tip metal fitting consists of a shock-absorbing spring.
