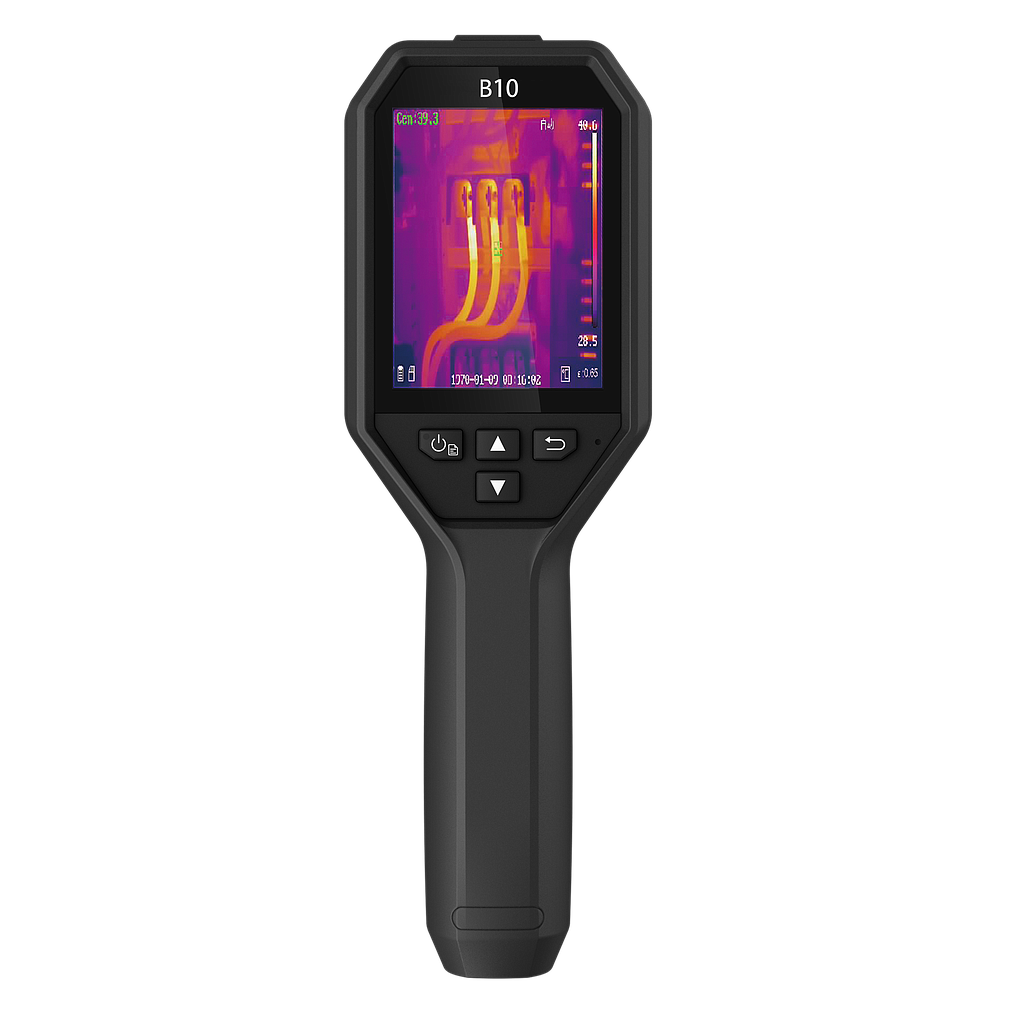

HIKMICRO B10 Handheld Thermography Camera (-20~550°C, 256x192px, EMMC 16GB)

THAY THẾ BẰNG MODEL B20S

Thermal Module

Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays

IR resolution: 256 x 192 (49, 152 pixels)

Pixel pitch: 12μm

Spectrum range: 8-14μm

NETD: < 40mK (@25°C, F#=1.0)

Focal length: 3.6mm

FOV (Field of View): 37.2°×50°

Image frequency: 25Hz

Focus: Fixed

IFOV (Spatial Resolution): 3.3 mrad

Aperture: F1.0

Minimum focus distance: 0.3 m (0.98 ft)

Optical Module

Picture resolution: 1600 × 1200 (2 MP)

FOV: 55°× 42°

Focal length: 2mm

Image Display

Display: 240 × 320 Resolution, 3.2’’ LCD Screen

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow

Image Modes: Thermal/Optical/Fusion/PIP

PIP: Thermal Picture in Optical Picture

Fusion: Thermal Picture and Optical Picture Combined

Measurement and Analysis

Object Temperature Range: 20°C to 550°C (-4°F to 1022°F)

Accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)

Measurement Presets: Center Spot, Hot Spot, Cold Spot, Point Presets, Off

High Temperature Alarm: Audible and Visual Warning

Storage

Storage media: EMMC (16 GB)

Image storage capacity: 90 000 Images

Image file format: BMP with Measurement Data Included

Functions

LED Light: Yes

Wi-Fi: No

UVC Cast Screen: Yes

Level/Span: Auto/Manual

Power System

Power supply: 3.7 V DC/0.5 A

Power consumption: 1.8 W

Battery type: Rechargeable Li-ion Battery

Battery operating time: 6 Hours Continuous Running

Battery charging time: 3 Hours

General

Menu language: 21 Languages

Working temperature range: -10°C~50°C (14°F~122°F)

Storage temperature range: -20°C~60°C (-4°F~140°F)

Protection level: IP54

Drop Test Height: 2 m (6.56 ft)

Interface: USB Type-C

Weight: Approx. 380 g (0.84 lb)

Dimension: 221.7 mm × 73.5 mm × 80.6 mm (8.73” × 2.89” × 3.17”)

Tripod Mounting: UNC ¼”-20
