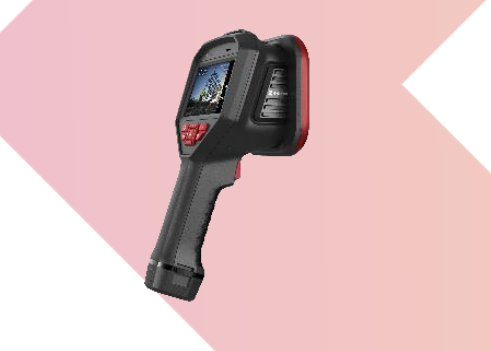

HIKMICRO W-AI56 Acoustic Imaging Camera (0.2 m -100 m)

Acoustic specificatons

Number of microphones: 64

Bandwidth: 2 khz to 60 khz

Distance: 0.2m to 100 m

Acoustic image palette:  8: white black, black white, rainbow, fusion, ironbow, red black, rain, blue red

Sound intensity display: peak point, center point

Acoustic detection mode: partial discharge detection, gas leakage detection

Acoustic image frame rate : 25 fps

Optical module

Built-in visual camera:  2688 x 1944 (5 mp)

Fov ( field of view): 53° (h) x 28° (v)

Picture resolution: 800 x 480

Video resolution: 800 x 480

Focal length: 6.4 mm

Image display

Display: 800 x 480 resolution, 4.3" LCD touch screen

Screen brightness: manual/automatically adjust

Power saving mode: standby mode, off

Digital zoom : 1.0x to 8.0x continuous

Storage

Storage media: default storage: removable sd card (64 gb) max. Storage capacity: 128 gb

Image storage capacity: 60,000 images

Voice note: max. 60 seconds

Text note: max. 200 characters

Video storage capacity: 54 hours

Video file format: mp4

Power system

Power supply: 12 vdc/1.5a, 5 vdc/2a (charging via usb)

Power consumption: 5.2w

Battery type: dismountable and rechargeable li-ion battery

Battery operating time: 4 hours continuous running

Battery charging time: 4 hours to full charge

Battery charging system: two-bay battery charger or in-imager charging, fast charging

Ac operation: AC operation with included power supply 1100 VAC to 240 VAC, 50/60 hz

General

Wi-fi: 802.11 b/g/n (2.4 ghz and 5 ghz)

Usb interface: ÚB type-C

Sd card interface: SD card

Hdmi interface: HDMI-D

Protection level: IP40

Drop test height: 1.2 m (3.94 ft)

Warranty: 3 years for full product and 2 years for battery

Vibration: 0.03 g2/hz (3.8 g), 2.5 g iec 60068-2-6

Shock: 25g, iec 68-2-29

Working temperature range: -20°c to 50°c (-4f to 122°f)

Storage temperature range: -20°c to 60°c 1-4°f to 140°f)

Relative humidity: < 95% non-condensing

Weight: approx. 940 g (2.07 lb)

Dimension: 292.2 mm x 127mm x 110.7 mm (11.50" x 5.00" x 4.36")

Tripod mounting:  unc 1/4" - 20

Menu language: 21 languages
