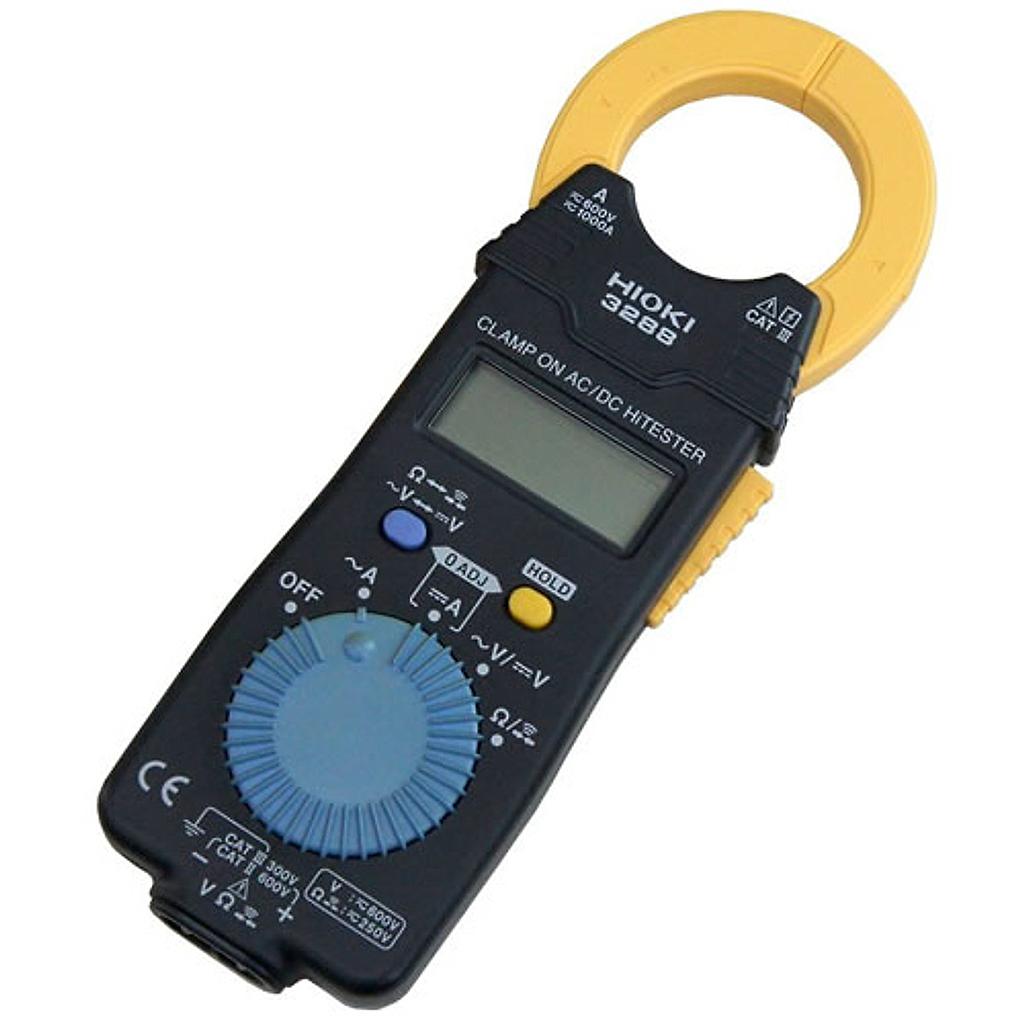

AC Current range: 100 or 1000 A AC, 2 ranges (±1.5 % rdg. ±5 dgt. at 50 or 60Hz), Effective value rectifier
DC Current range: 100 or 1000 A AC, 2 ranges (±1.5 % rdg. ±5 dgt.)
AC Voltage range: 4.200 to 600 V AC, 4 ranges (±2.3 % rdg. ±8 dgt. at 50 or 60Hz), Effective value rectifier
DC Voltage range: 420.0 mV to 600 V DC, 5 ranges (±1.3 % rdg. ±4 dgt.)
Resistance: 420.0 to 42.00 M-ohm, 6 ranges
Accuracy: ±2.0 % rdg. ±4 dgt. (at 420 to 420 k-ohm range)
Continuity: 420.0 ohm (Buzzer sounds at approx. 50 ohm or less)
Frequency characteristics: AC current: 10 to 1 kHz, AC voltage: 30 to 500 Hz
Display Section: Digital / LCD, maximum 4199 dgt.
Sampling Rate: 2.5 times/sec
Crest Factor (RMS): 2.5 or less (150 A, 1000 V maximum)
Max. Circuit Voltage: 600 V AC rms (insulated wire)
Power Supply: CR2032 (3 VDC) × 1, Continuous use 25 hours
Core jaw dia.: Ø35 mm(1.38 in)
Dimensions: 57 mm(2.24 in)W × 180 mm(7.09 in)H × 16 mm(0.63 in)D
Weight: 150 g (5.3 oz)
Accessories: 9208 TEST LEAD (1), 9398 CARRYING CASE (1)
