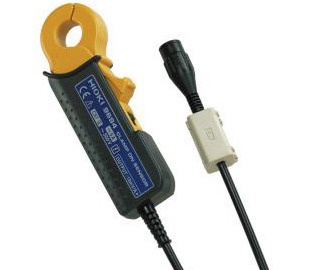

Hioki 9694 Clamp-on Sensor

Rated measurement current: 5 A AC

Max. measurement current: Continuous 50 A (45 to 66 Hz)

Output rate: 10 mV AC/A

Amplitude accuracy (45 to 66 Hz): ±0.3% of reading ±0.02% of full scale (f.s.)

Phase accuracy: ±2° (45 Hz to 5 kHz)

Amplitude frequency characteristics: Within ±1% at 40 Hz – 5 kHz (deviation from amplitude accuracy)

Max. rated voltage to earth: 300 V AC rms or less

Measurable conductor diameter: φ 15 mm (0.59 in) or less

Operating temperature and humidity: 0°C to 50°C (32°F to 122°F), ≤ 80% RH (no condensation)

Dustproofness and waterproofness: N/A

Dimensions and mass: 46 mm (W) × 135 mm (H) × 21 mm (D), 230 g (8.1 oz)

Cord length: 3 m (9.84 ft)

Output terminal: BNC
